BABY / MINI

The Parolin young-aimed line of chassis

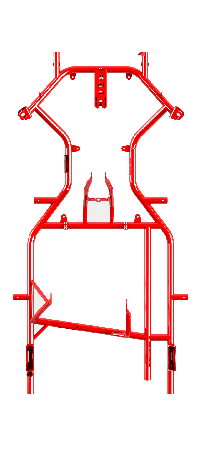

The Parolin young-aimed line of chassis is made of seamless special CrMo steel tubes of 28mm diameter.

High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through high-tech CNC machines. Chassis is available in two wheelbases, 900mm for Baby and 950mm for Mini and Cadets.

The 30mm rear axle is supported by two bearings, and it’s available in three different pipe compounds: soft, medium and hard.

Wheels are 145/110, made of aluminium and heat-treated.

The new aerodynamic streamlined bodyworks Eurostar Mini are designed and produced within Parolin Racing Kart's facilities. The chassis is powder coated in Parolin shiny red colour.

The Mini chassis is available in two versions: Basic, fitting the standard brake, and Motorsport, having a self-adjusting hydraulic brake system with radial fittings and equipped with top features.

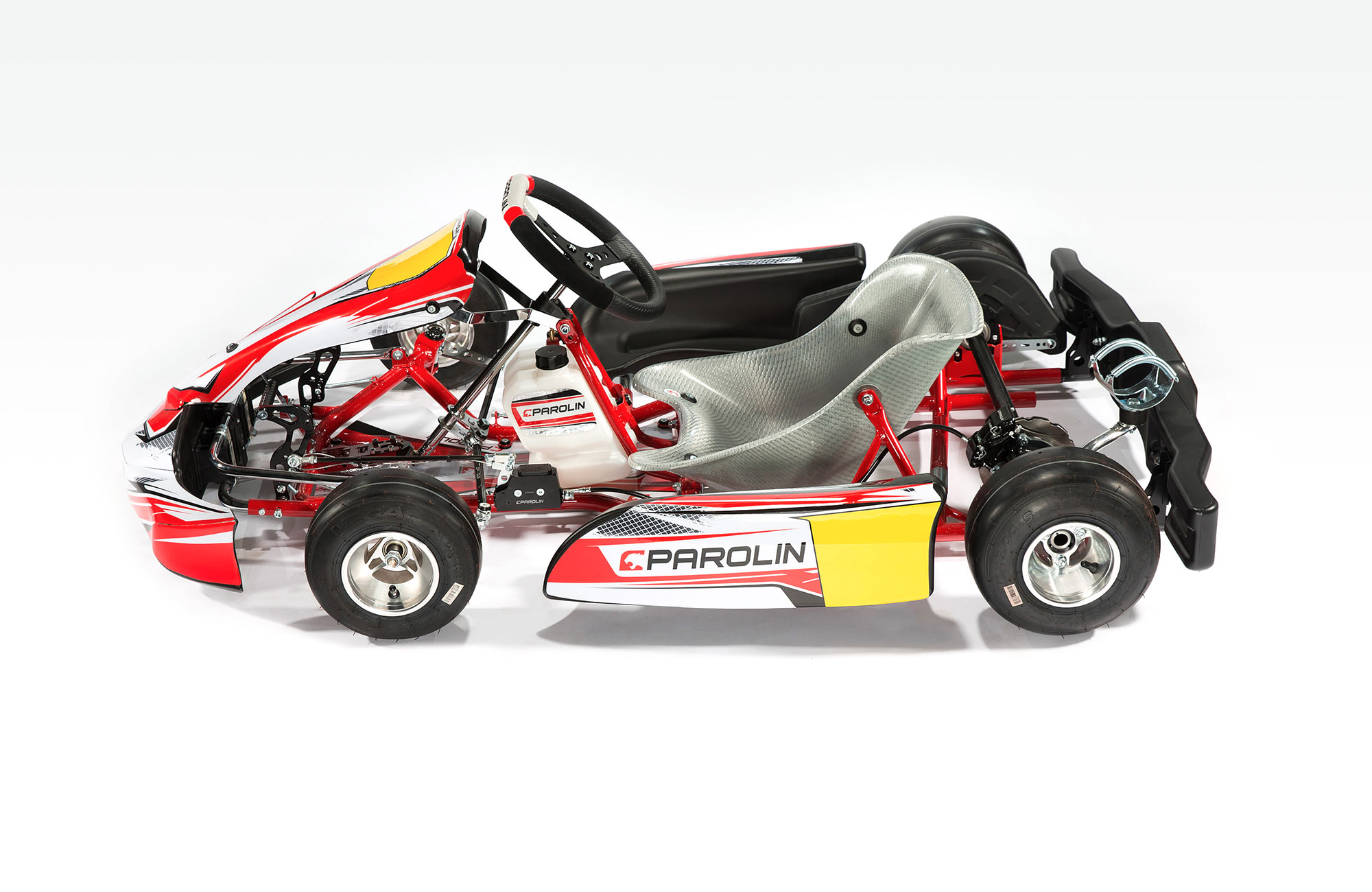

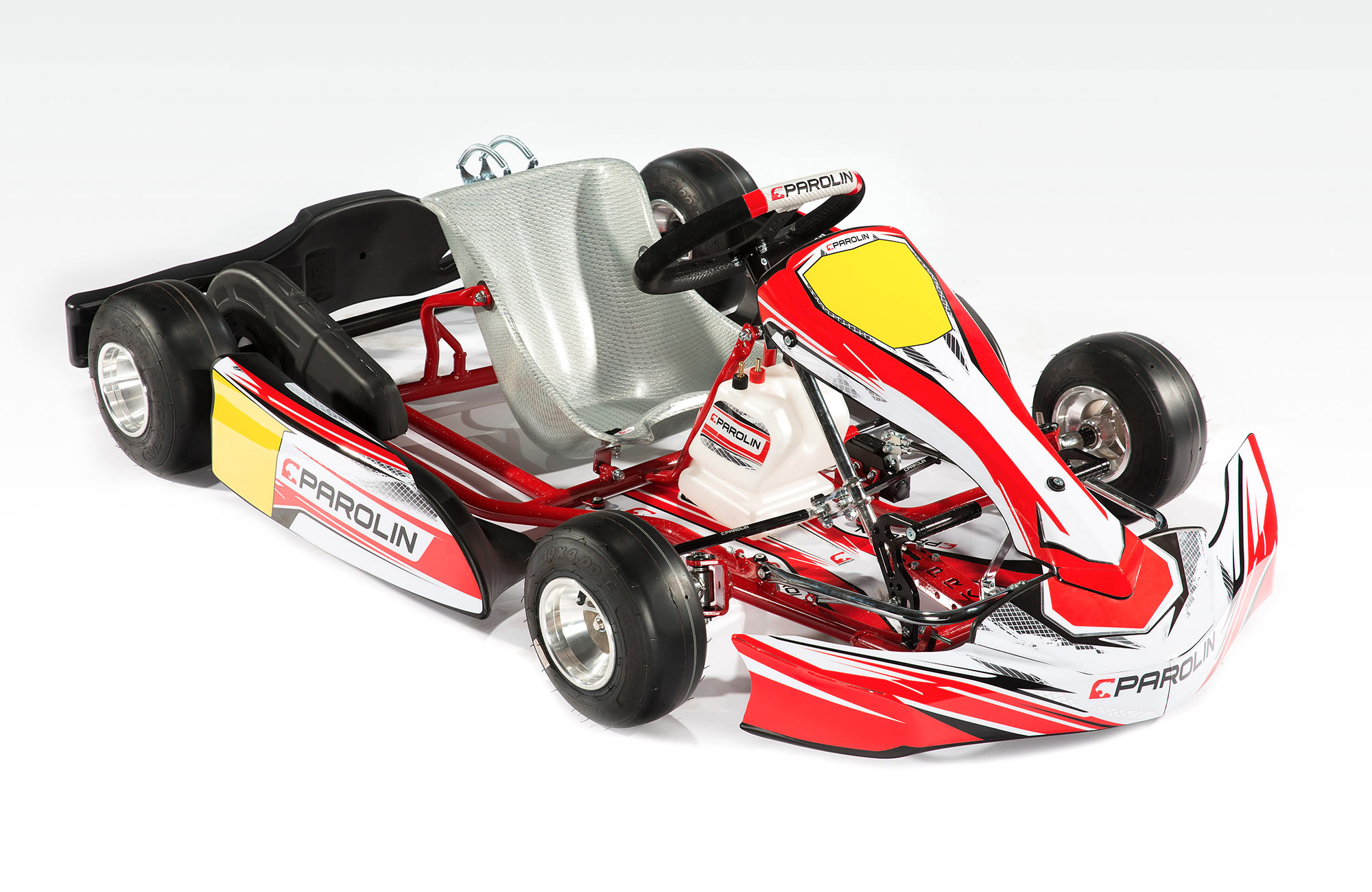

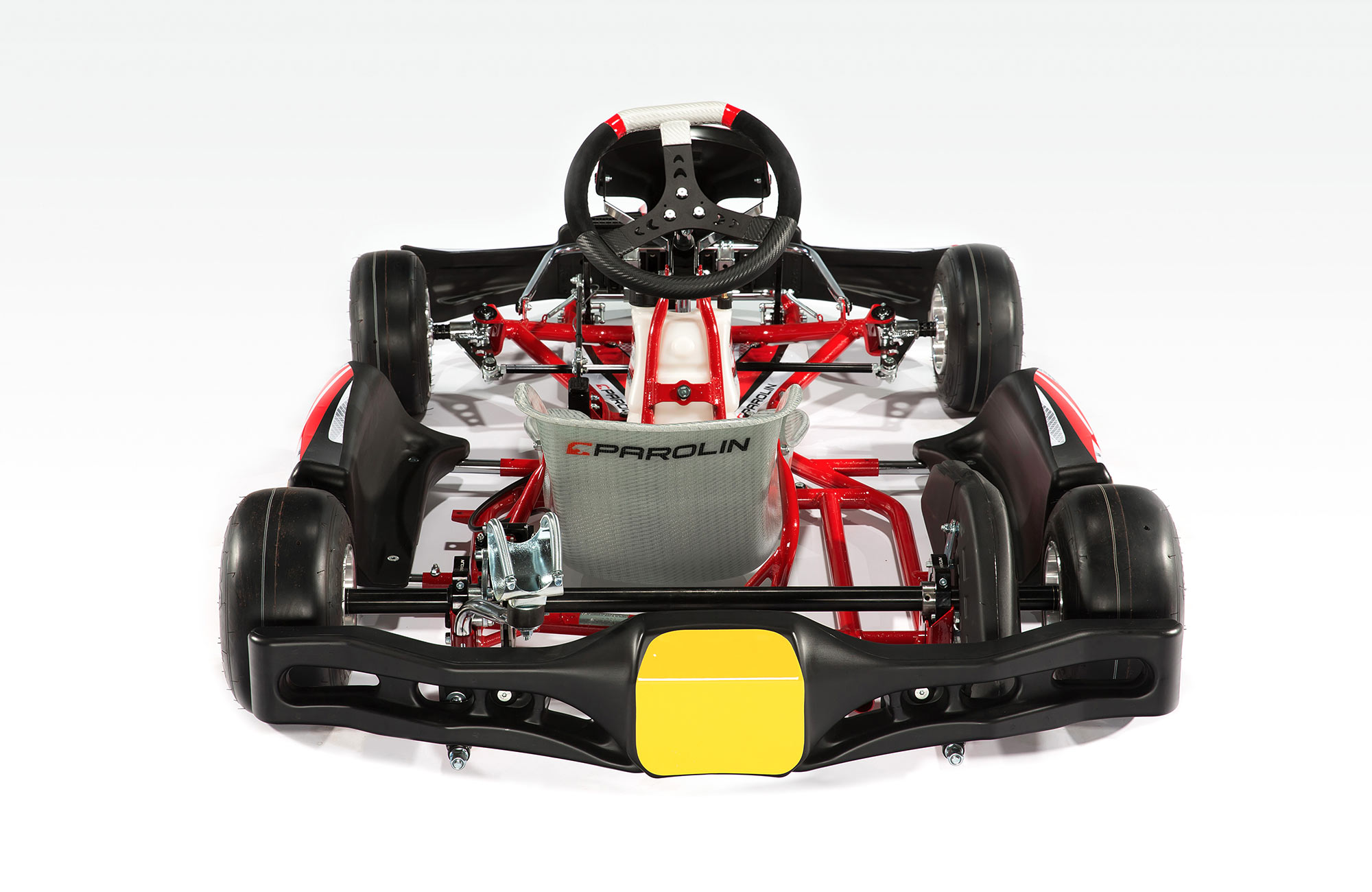

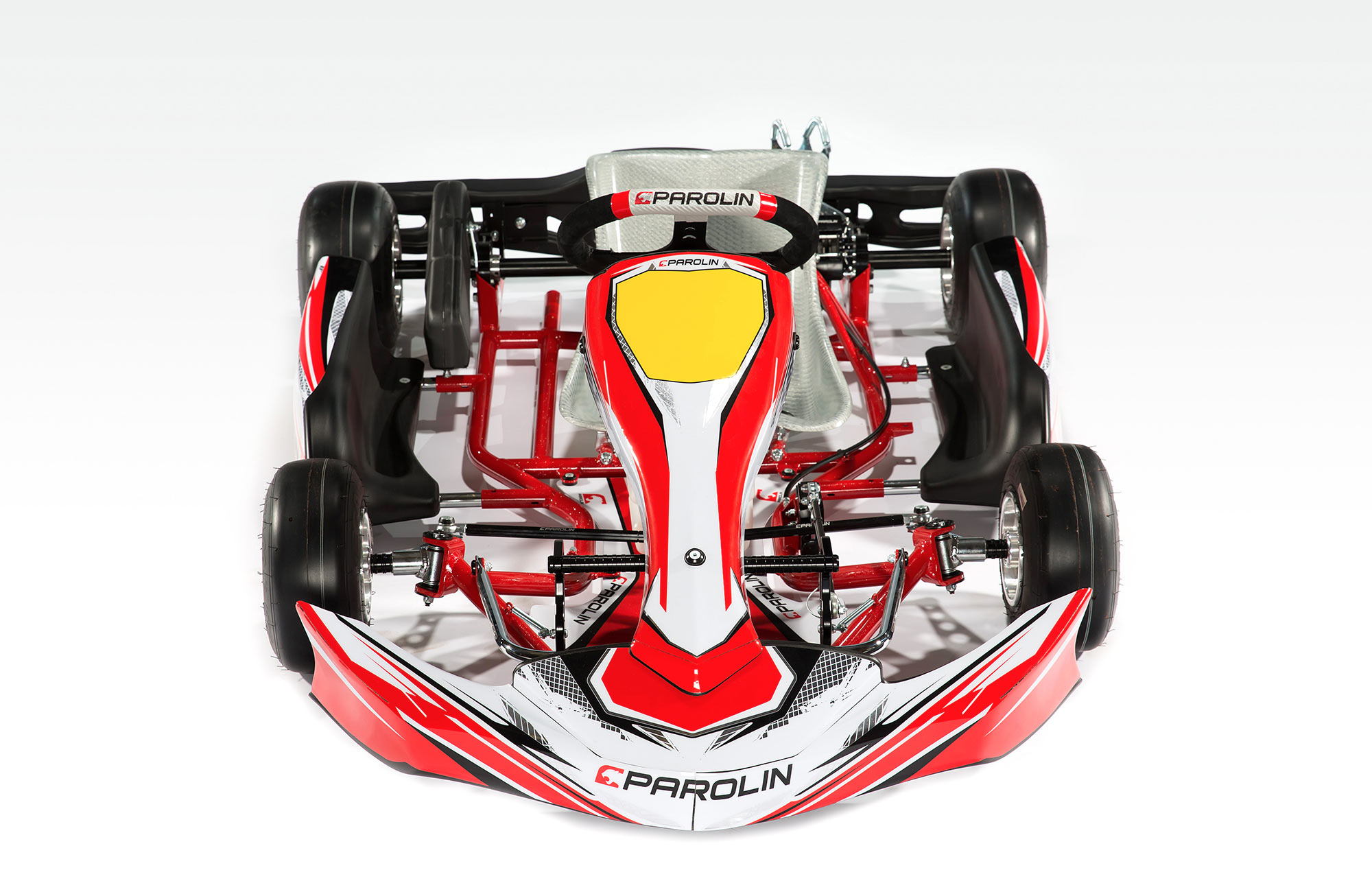

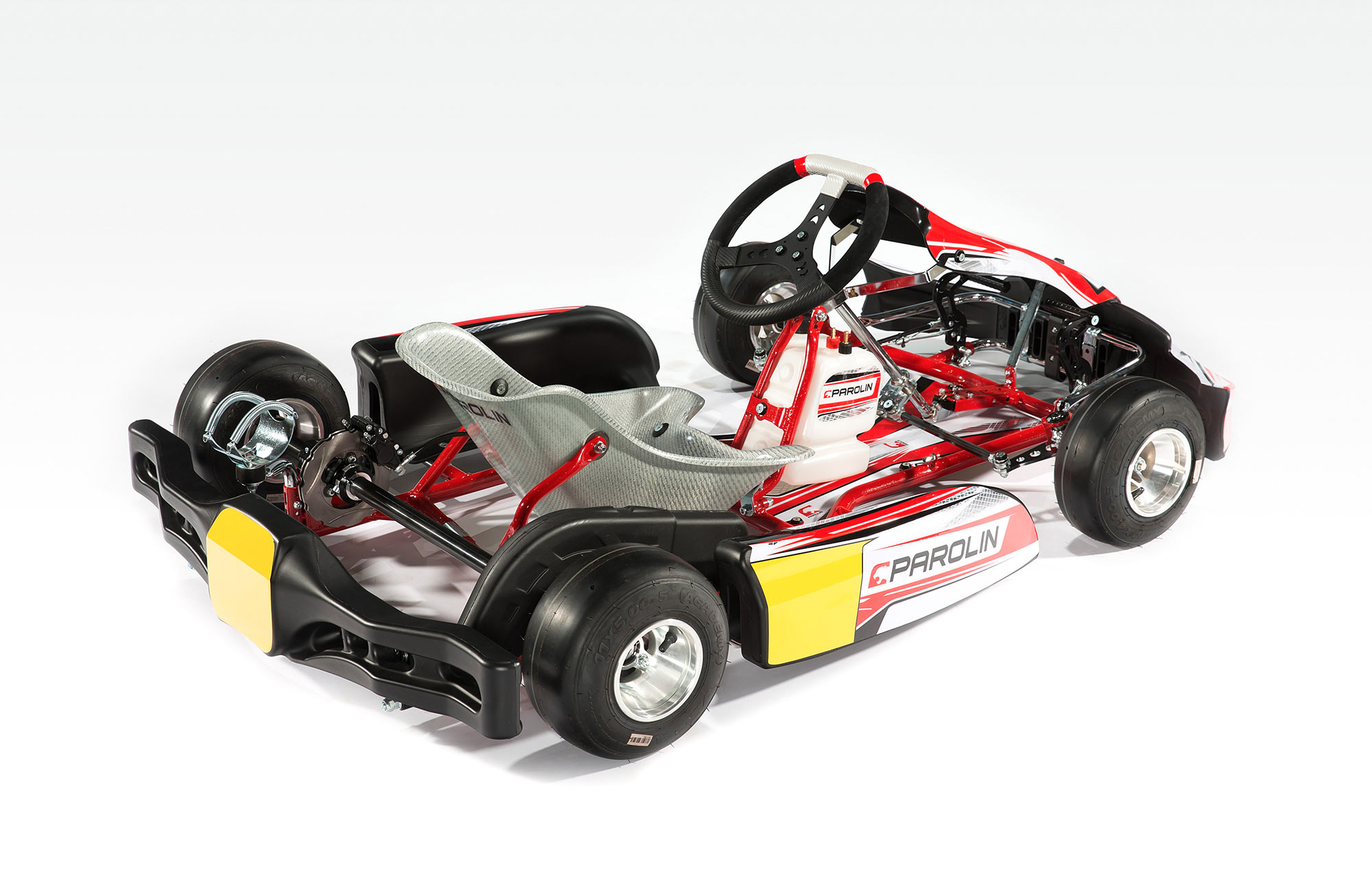

Gallery

TECHNICAL SHEET

Version Code 99KBK5M
BABY Opportunity 60 MOTORSPORT
Ø Tubes 28 X2 mm
Wheel base 850 mm
Rear width 586 mm
Front width 635 mm
Length 1200 mm
Tank capacity 4 lit
Brake system hydraulic self adjusting
Brake position rear radial fitting
Rear brake disk 155x4 mm
Axle 30x5x960 hollow
Steering wheel 300 black
Bodyworks Eurostar Mini
Alloy Wheels 110-145
Homologation CSAI 08/CH/14
Version Code 99KMK5M
MINI Opportunity 60 MOTORSPORT
Ø Tubes 28 X2 mm
Wheel base 950 mm
Rear width 586 mm
Front width 635 mm
Length 1300 mm
Tank capacity 4 lit
Brake system hydraulic self adjusting
Brake position rear radial fitting
Rear brake disk 155x4 mm
Axle 30x5x960 hollow or 40x2
Steering wheel 300 black
Bodyworks Eurostar Mini
Alloy Wheels 110-145
Homologation CSAI 08/CH/14

OPTIONAL

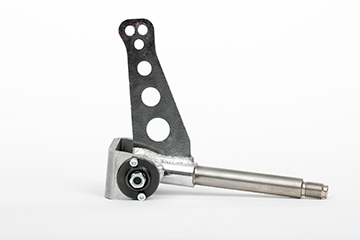

KIT EASY CASTER

Innovative adjustment system that allows you to have more degrees for adjusting the front wheels.

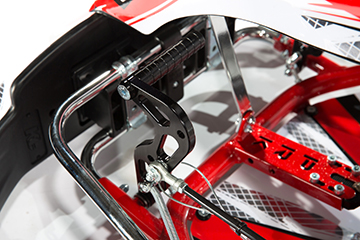

ADJUSTABLE RUDDER PEDALS

Allows you to adjust the pedals according to the driver's height in a simple and fast manner.

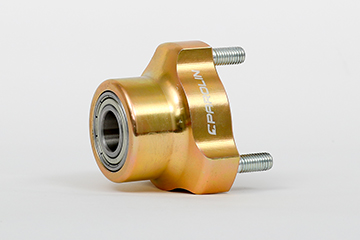

MAGNESIUM HUBS KIT

The magnesium increases the rigidity of the hubs, improves heat dissipation and reduces the weight of the rotating masses.

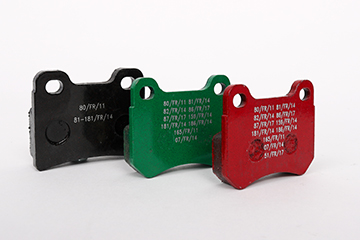

GREEN - RED – BLACK BRAKE PADS

Three different types of brake pads to optimise braking depending on the driver's driving style.

MAGNESIUM RIMS

They reduce weight, improve heat dissipation and offer more possibilities for chassis setup.
