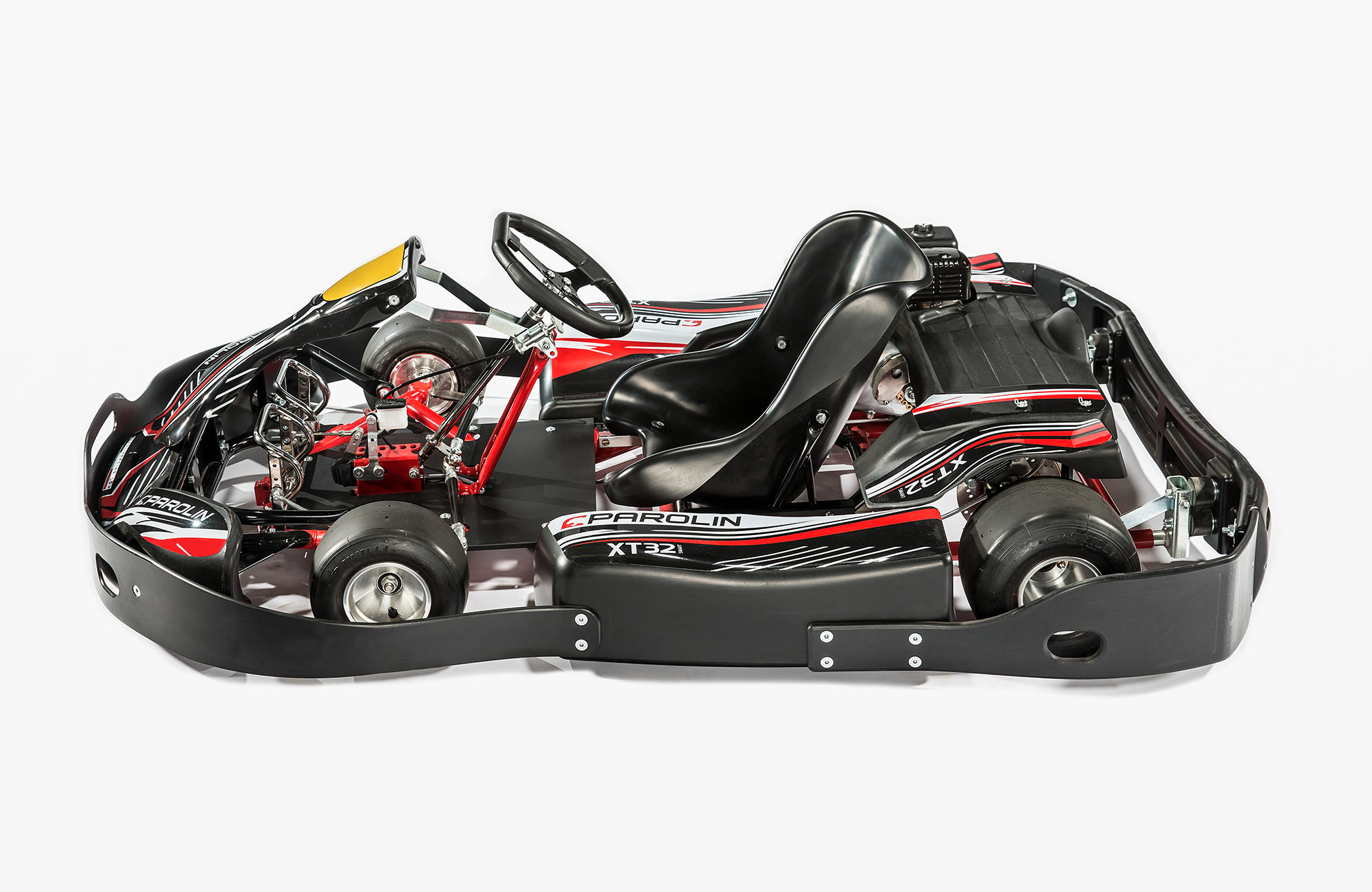

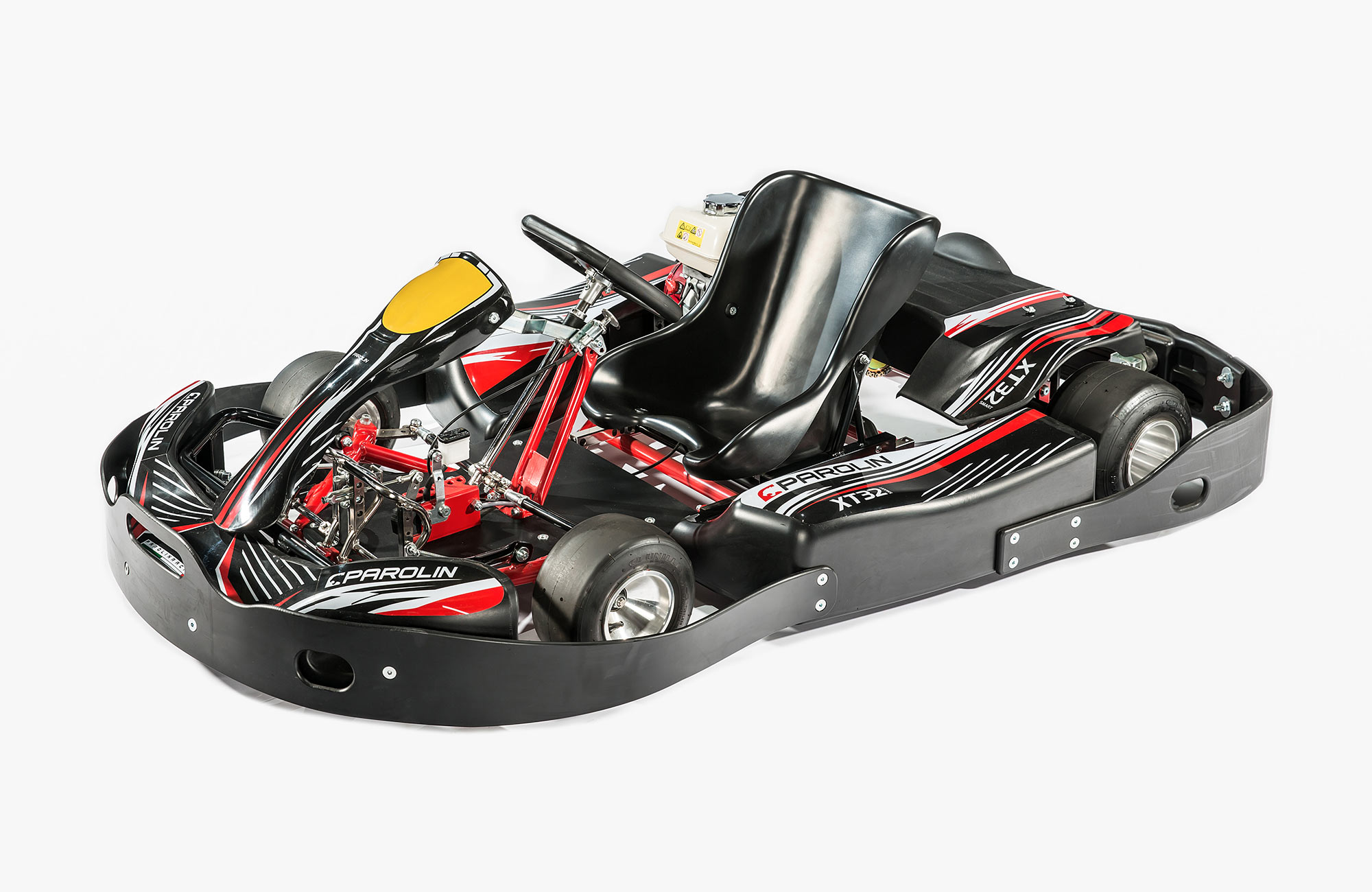

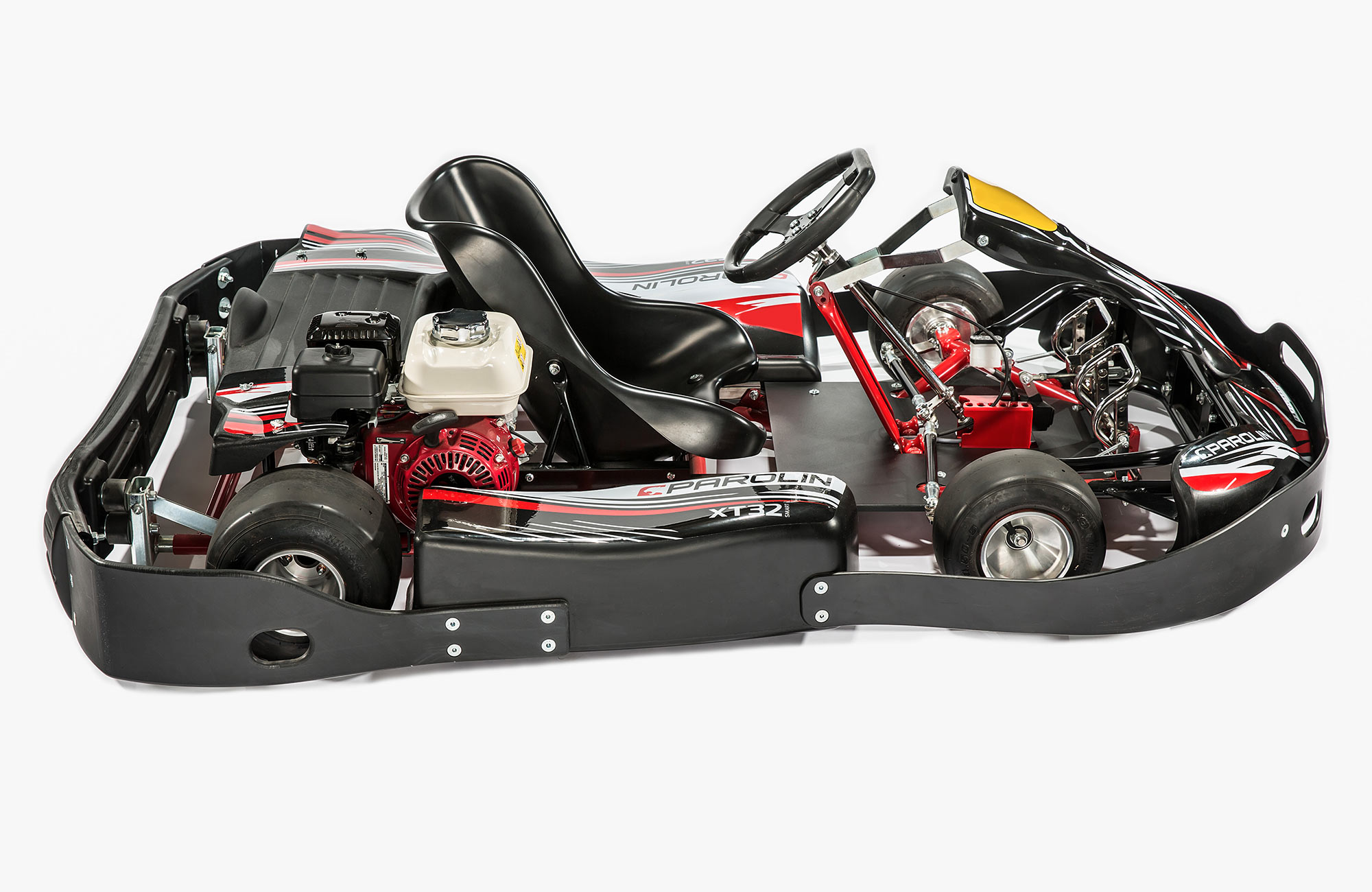

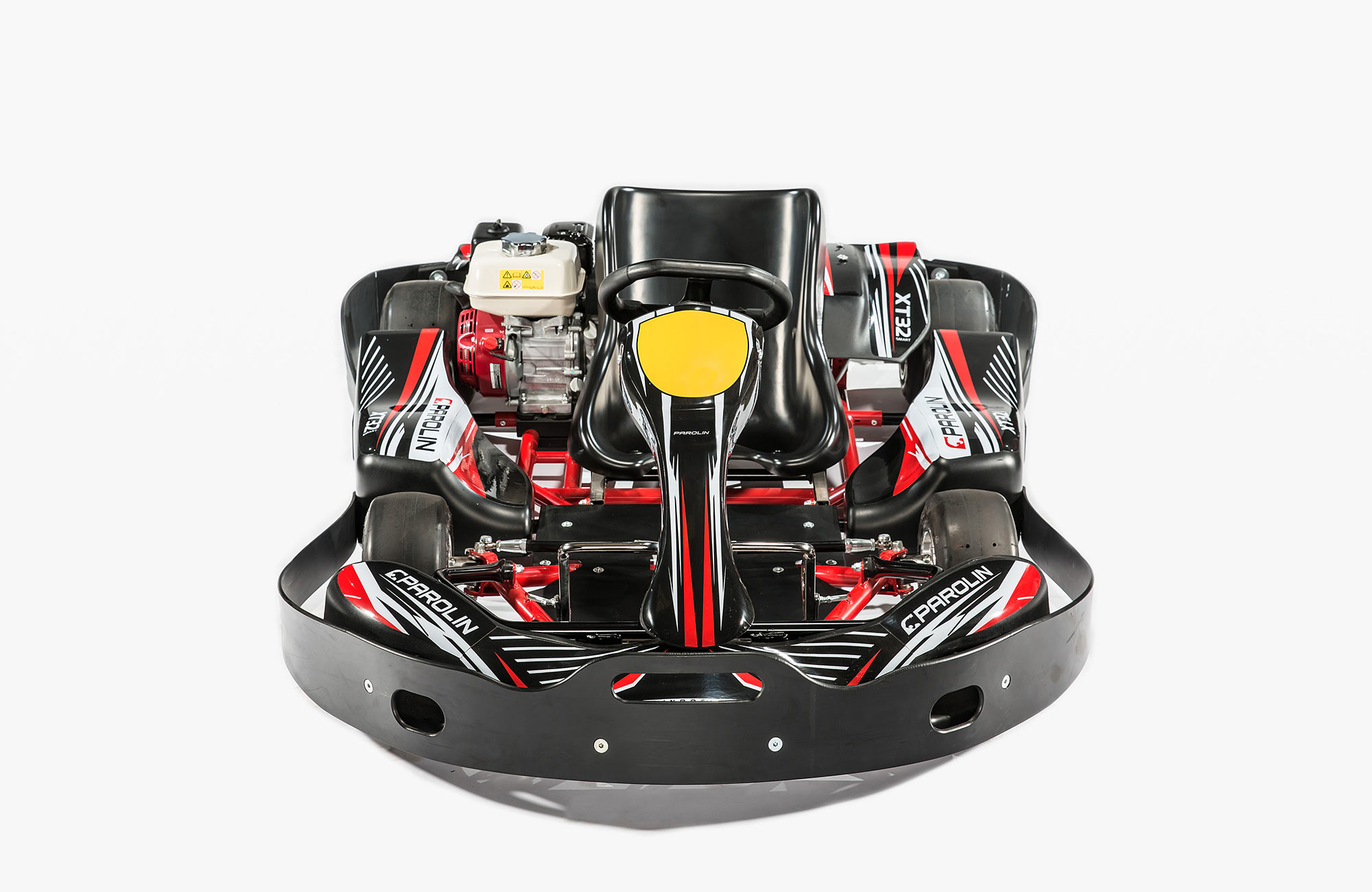

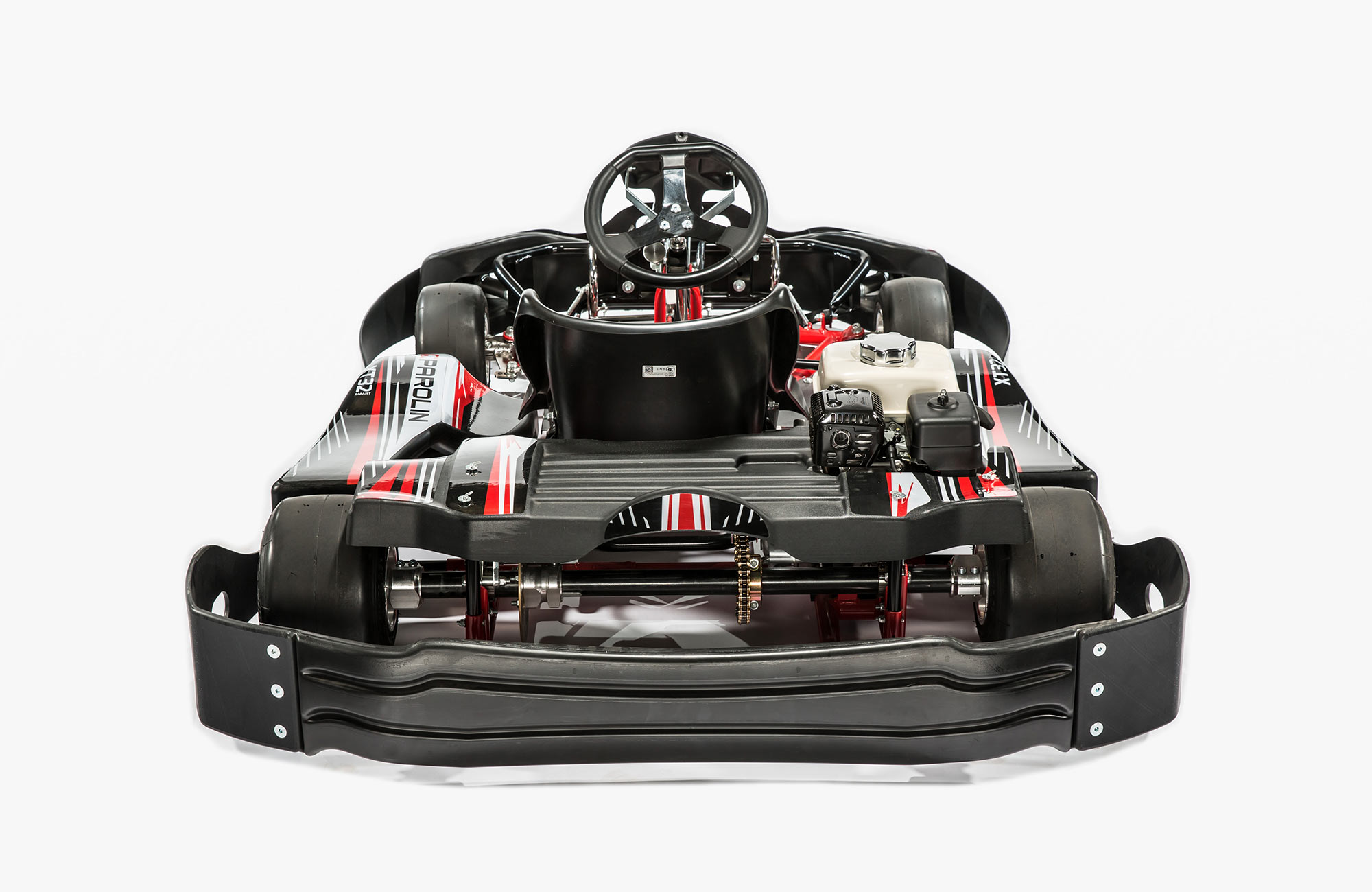

The Parolin XT32 is a state-of-the-art vehicle, which presents an extreme heavy-duty rental kart capability, while being conceived to perform. Tubes are cut and welded using laser technology machines and shaped with CNC fully automatic machines. Easy-access bolts allow for the removal of the axle and the rear brake, adding to the vehicle's ease of maintenance and repair.
The clever rear engine location grants a comfortable drive position. The outside polymer bumpers, especially in indoor tracks, allow the vehicles to slide one against the other in case of collision. Bodywork, rear axle guards, and protective covers over the rotating parts are essential safety components. The roll bar and safety belts can be installed to give the driver extra protection.
| Parolin XT32 | |
|---|---|
| Chassis Code | 99KIX32_PC |
| ø tubes | 32x2mm Cr-Mo |
| Pitch | 1030 mm |
| Total Width | 1300 mm |
| Total Lenght | 1800 mm |
| ø axle | 40 x 5 x 1000 mm |
| Brake System | Self-Adjusting |
| Rear brake disk | 180 X 4 mm Steel (std.) 180 X 8 mm Steel (opt.) |
| Steering wheel | 320 mm |
| Seat | M or L Fiberglass (std.) Tillett covered (opt.) |
| Protections | All-round special polymer bumpers Full Cover Bodyworks |
| Options | |
|---|---|
| Engine | Fiberglass Engine cover for the following engines EX21 Subaru GX200 Honda 270 External exhaust pipe kit complete with silencer (located under the rear axle cover) Belt and pulley kit (Specify n. of teeth) Chain and Sprocket kit ( specify n. of teeth ) Steel chain sprocket from 28 to 33 teeth, 428 Steel engine sprocket from 12 to 15 teeth, 428 Eurostar chain (428 HR ) Gasoline pump kit |
| Protections | Roll bar and security belts |
| Wheel | Wheel set 180 - 125 mm reinforced and heat treated aluminium with 20 mm Pin |
| Tires | Bridgestone 10x3.60-5 / 11x6.00-5 10x4.50-5 / 11x7.10-5 |
THREE DIFFERENT ENGINE DISPLACEMENTS
The XT32 Smart can be equipped with three different engines: Honda GX120, Honda GX160 and Honda GX200, Honda engines performance ensure reliability and long maintenance intervals.
ROLL BAR AND SAFETY BELTS
The Roll Bar, as well as the seat belts, raise the driver's protection to the maximum level in the event of a collision or overturning.

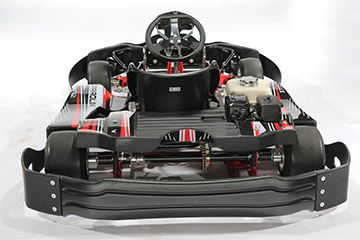

AXLE FAIRINGS
The fairings cover the axle and transmission parts, a safety feature which avoids any type of contact of the moving parts with the pilot. The coupling system has been designed for quick dismantling during vehicle maintenance activities.

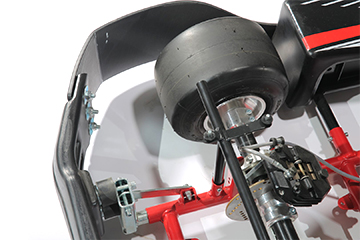

EXTERNAL FAIRINGS
The external fairings give all-round protection of the kart against any types of blows

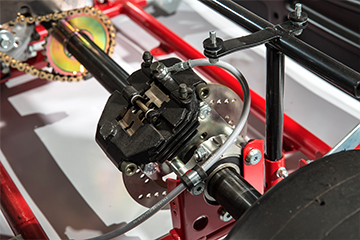

HYDRAULIC BRAKES
The hydraulic brake, derived from racing, ensures repeated braking without overheating the disc, which raises the vehicle’s safety level.
