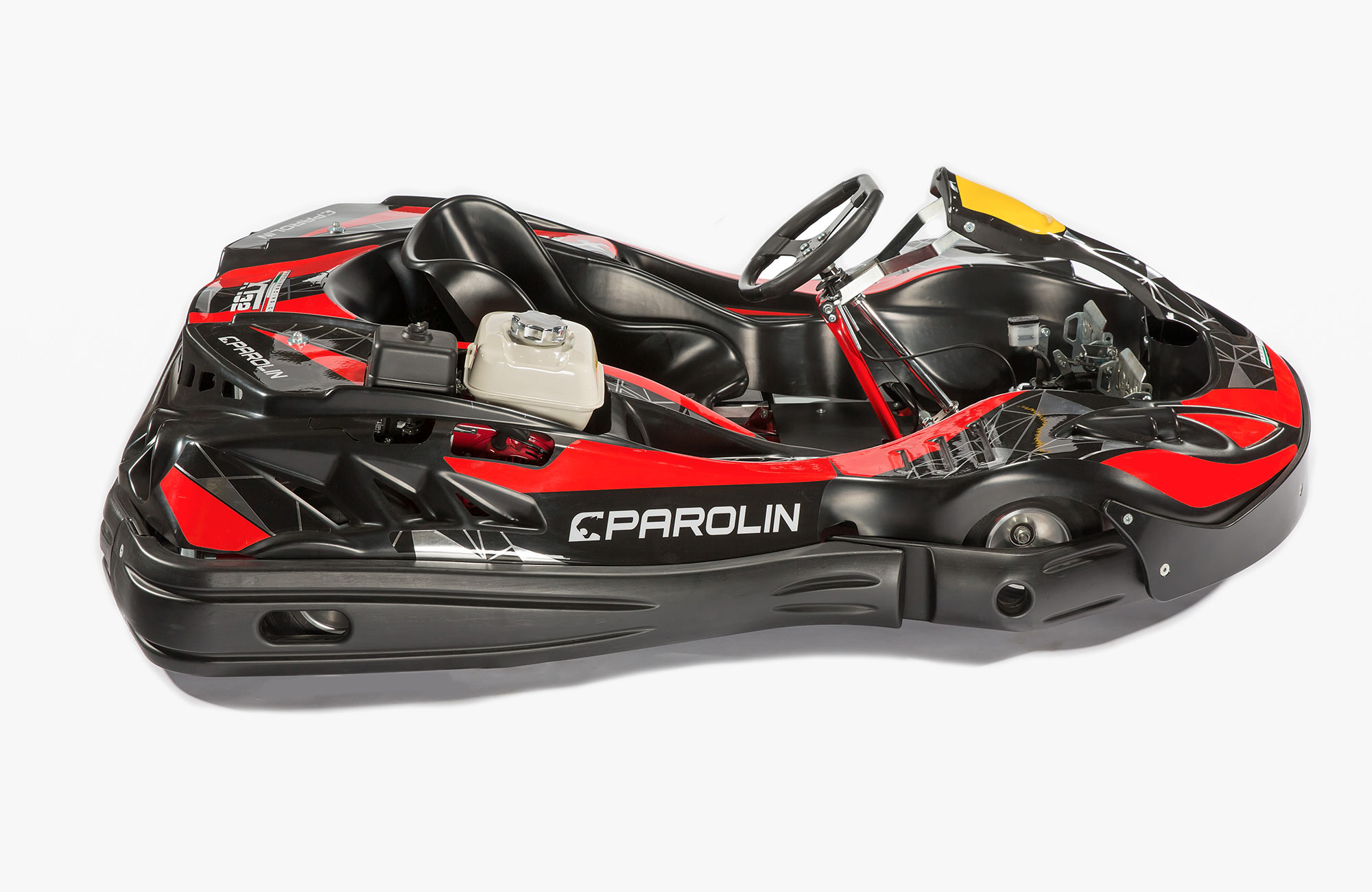

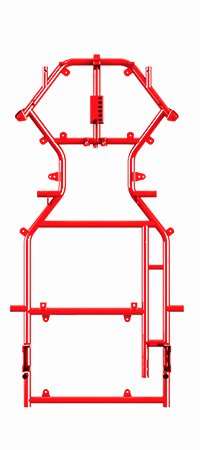

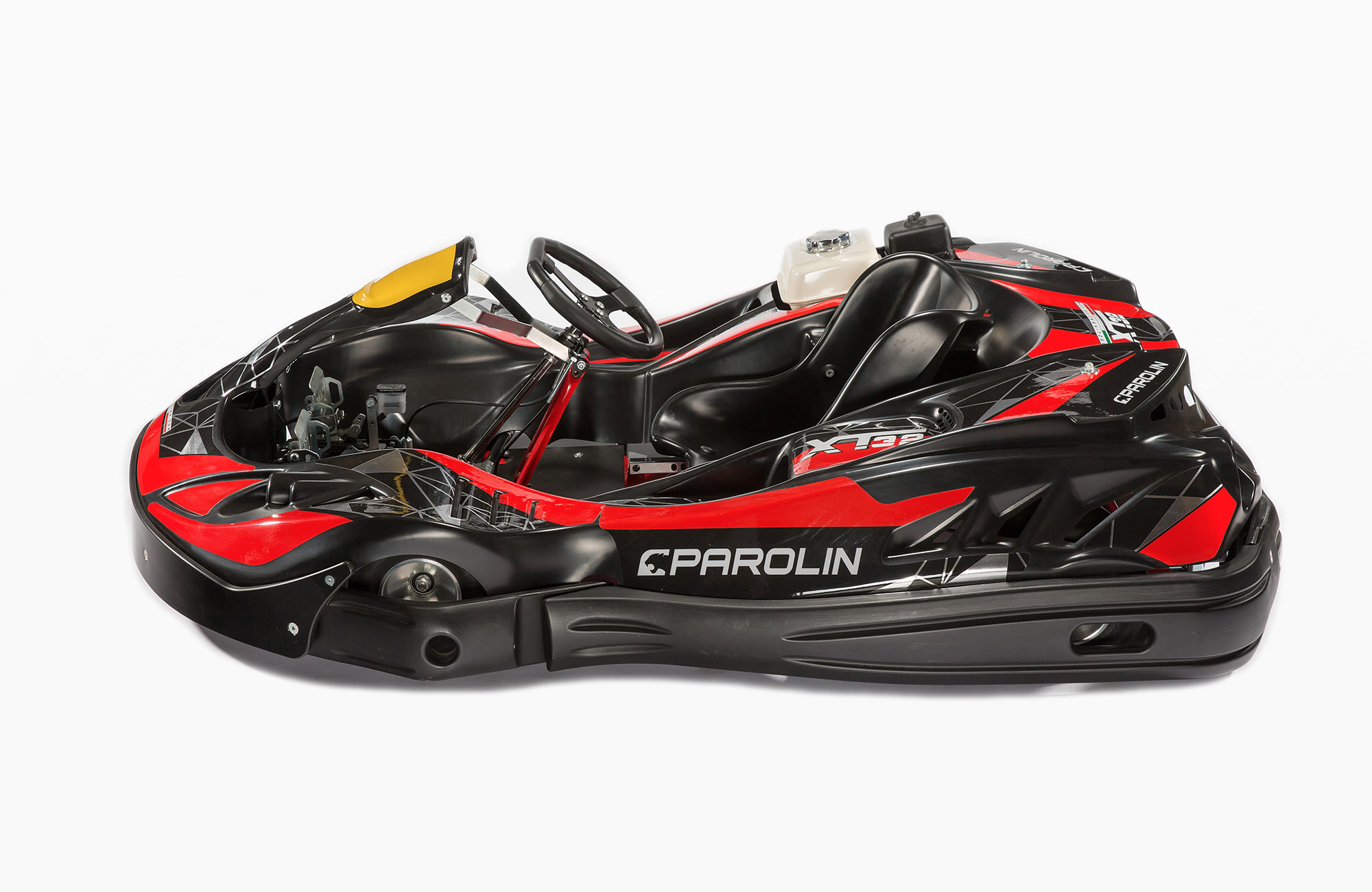

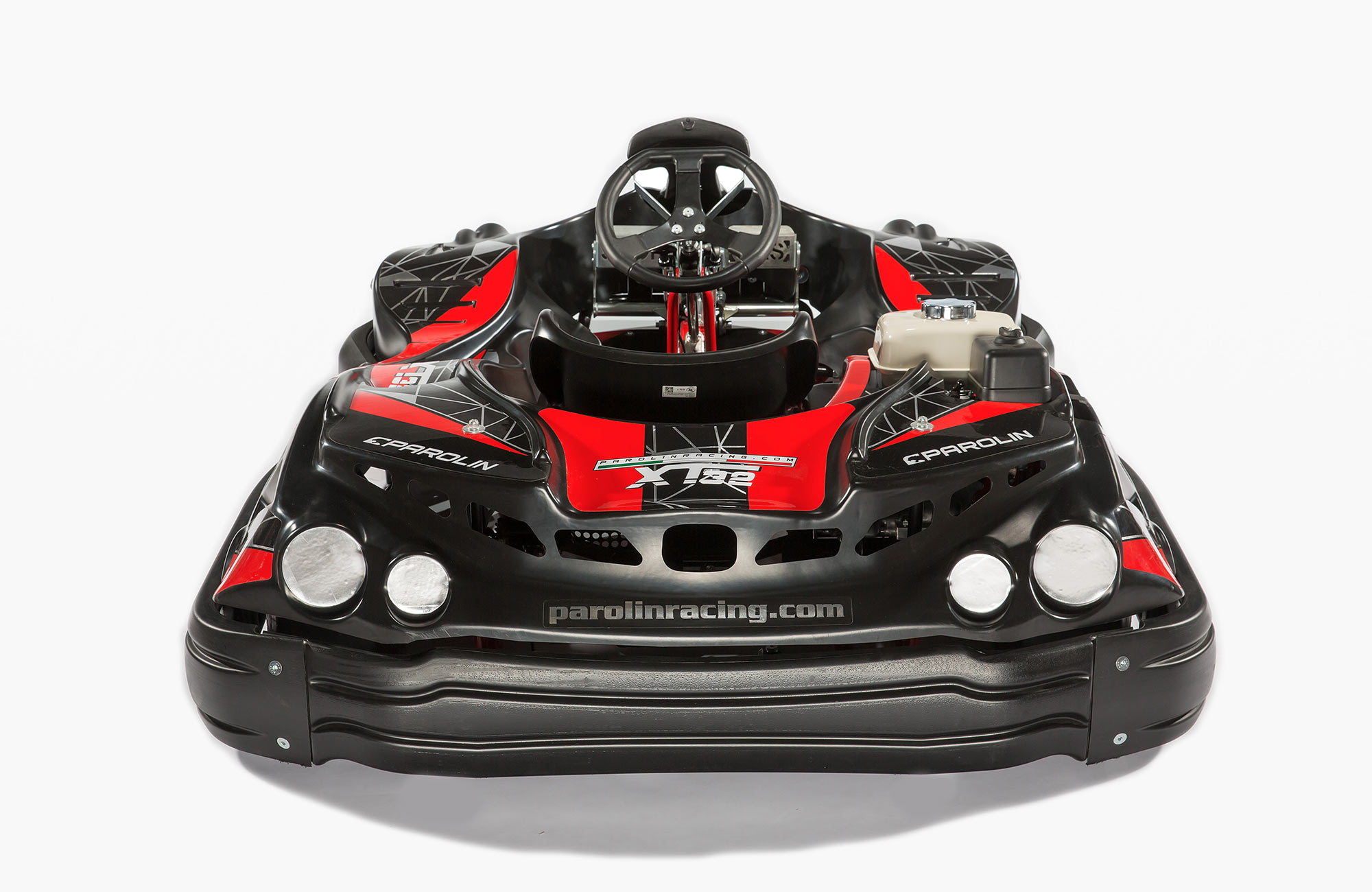

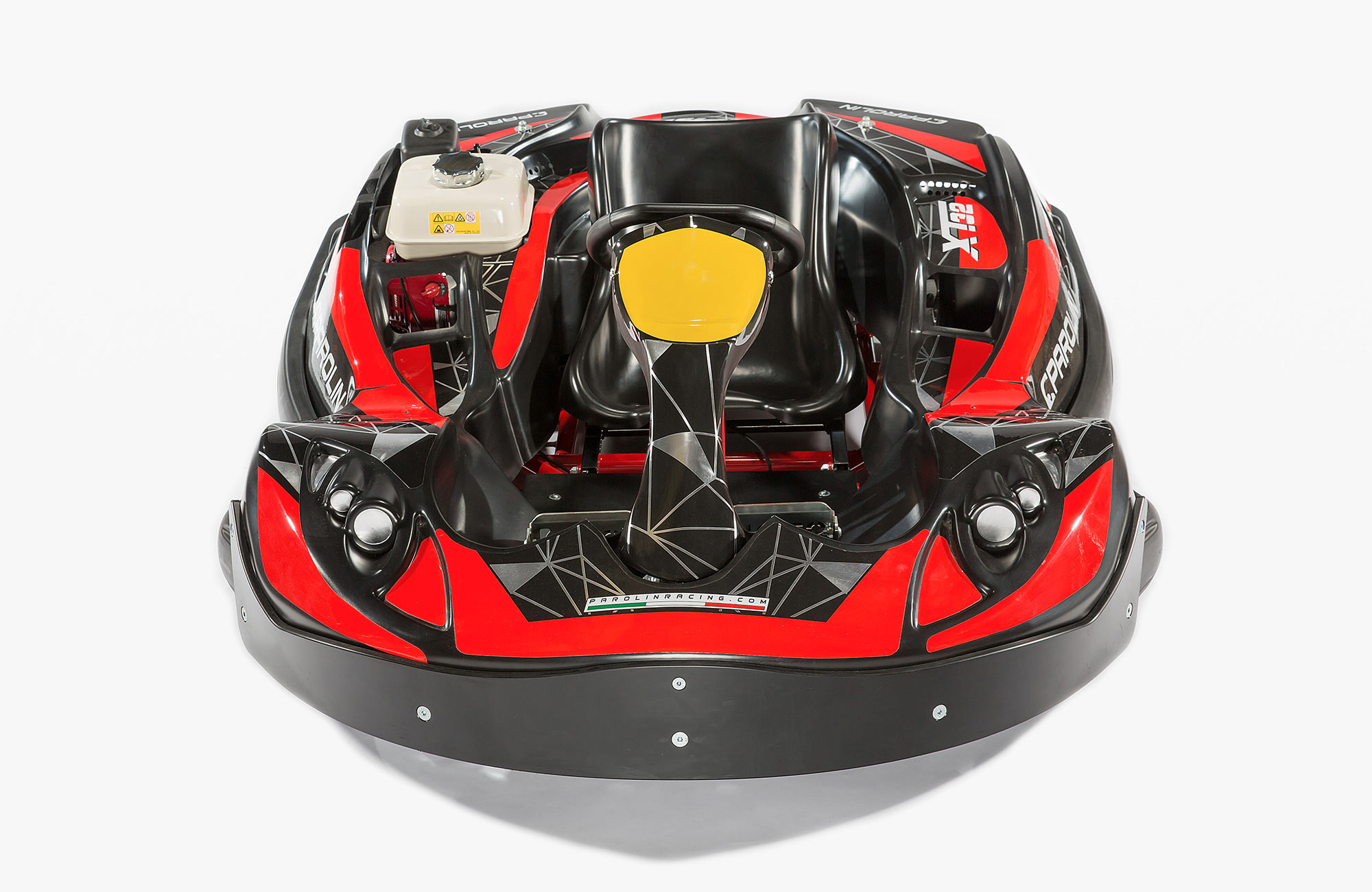

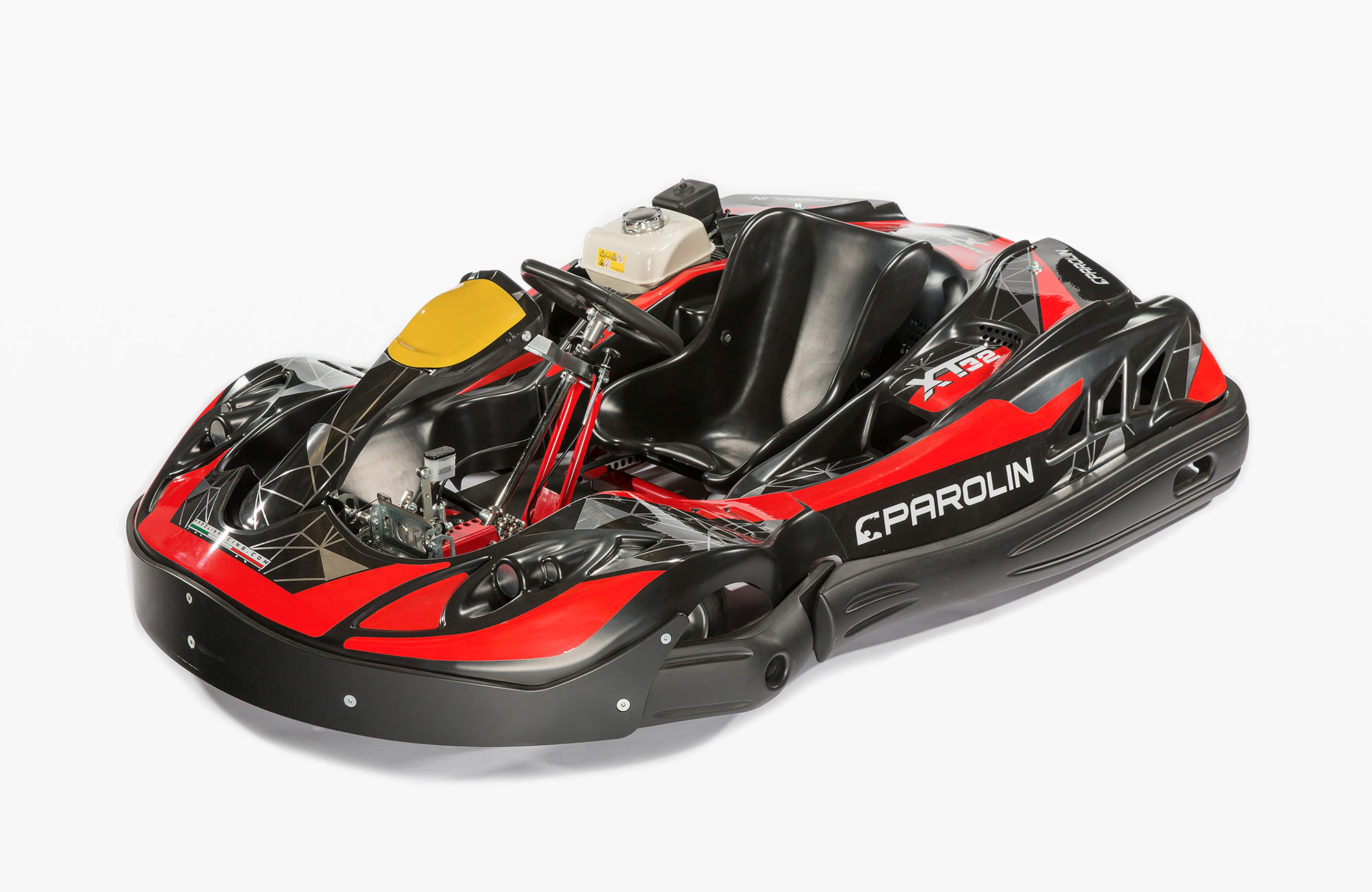

The Parolin XT32 is a state-of-the-art vehicle, which presents an extreme heavy-duty rental kart capability, while being conceived to perform. Tubes are cut and welded using laser technology machines and shaped with CNC fully automatic machines.
Easy-access bolts allow for the removal of the axle and the rear brake, adding to the vehicle's ease of maintenance and repair.
The clever rear engine location grants a comfortable drive position. The outside polymer bumpers, especially in indoor tracks, allow the vehicles to slide one against the other in case of collision. Bodywork, rear axle guards, and protective covers over the rotating parts are essential safety components. The roll bar and safety belts can be installed to give the driver extra protection.
|ø tubes||32x2mm Cr-Mo|
|Total Width||1300 mm|
|Total Lenght||1800 mm|
|ø axle||40 x 5 x 1000 mm|
|Rear brake disk||180 X 4 mm Steel (std.) 180 X 8 mm Steel (opt.)|
|Steering wheel||320 mm|
|Seat||M or L Fiberglass (std.) Tillett covered (opt.)|
|Protections||All-round special polymer bumpers Full Cover Bodyworks|

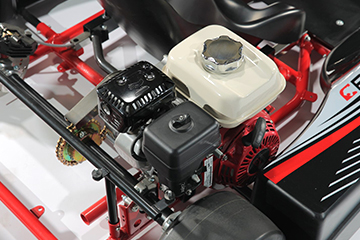

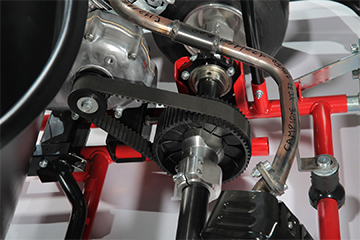

|Engine||Fiberglass Engine cover for the following engines EX21 Subaru GX200 Honda 270 External exhaust pipe kit complete with silencer (located under the rear axle cover) Belt and pulley kit (Specify n. of teeth) Chain and Sprocket kit ( specify n. of teeth ) Steel chain sprocket from 28 to 33 teeth, 428 Steel engine sprocket from 12 to 15 teeth, 428 Eurostar chain (428 HR ) Gasoline pump kit|
|Protections||Roll bar and security belts|
|Wheel||Wheel set 180 - 125 mm reinforced and heat treated aluminium with 20 mm Pin|
|Tires||Bridgestone 10x3.60-5 / 11x6.00-5 10x4.50-5 / 11x7.10-5|

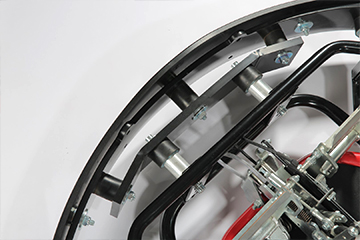

The front absorption system cushions frontal blows against the kart’s barriers. This safety feature reduces the blows received by the driver.

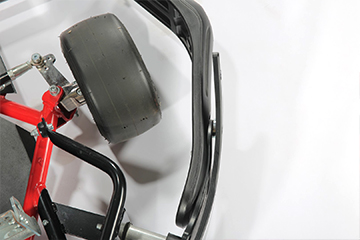

The external fairings give all-round protection of the kart against any types of blows

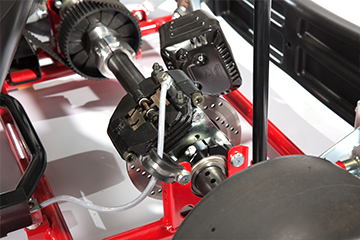

The hydraulic brake, derived from racing, ensures repeated braking without overheating the disc, which raises the vehicle’s safety level.
