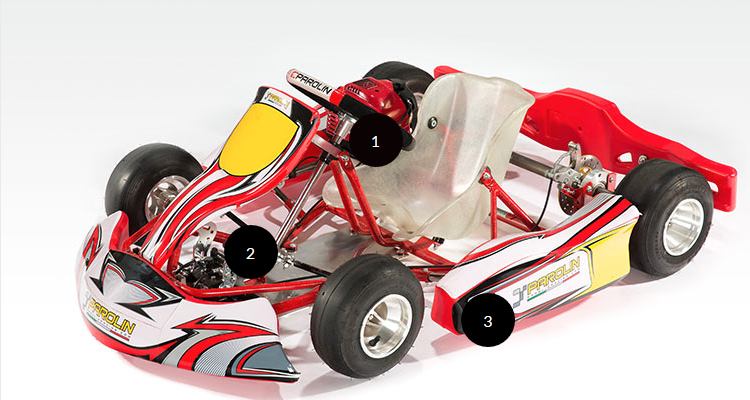

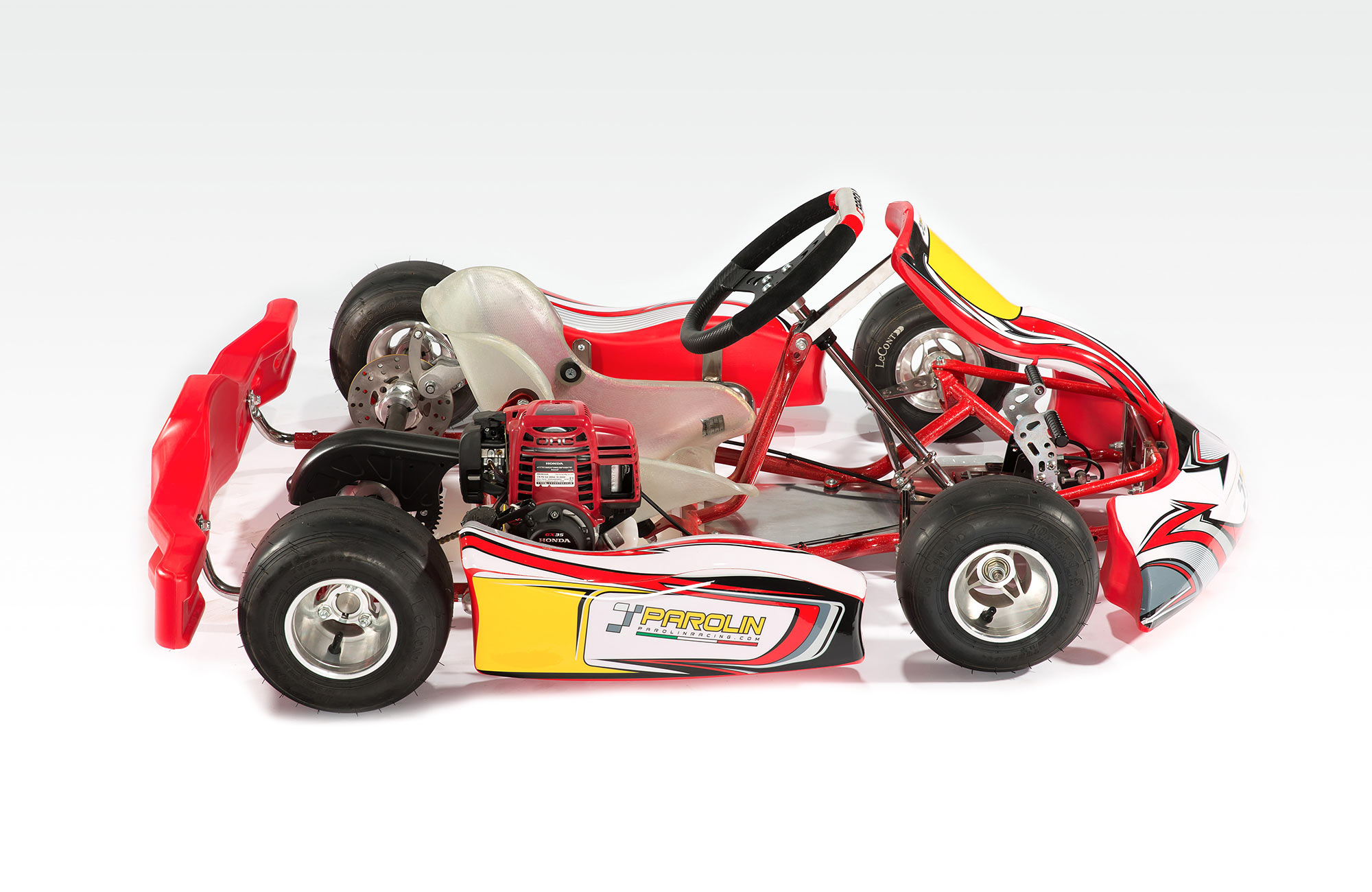

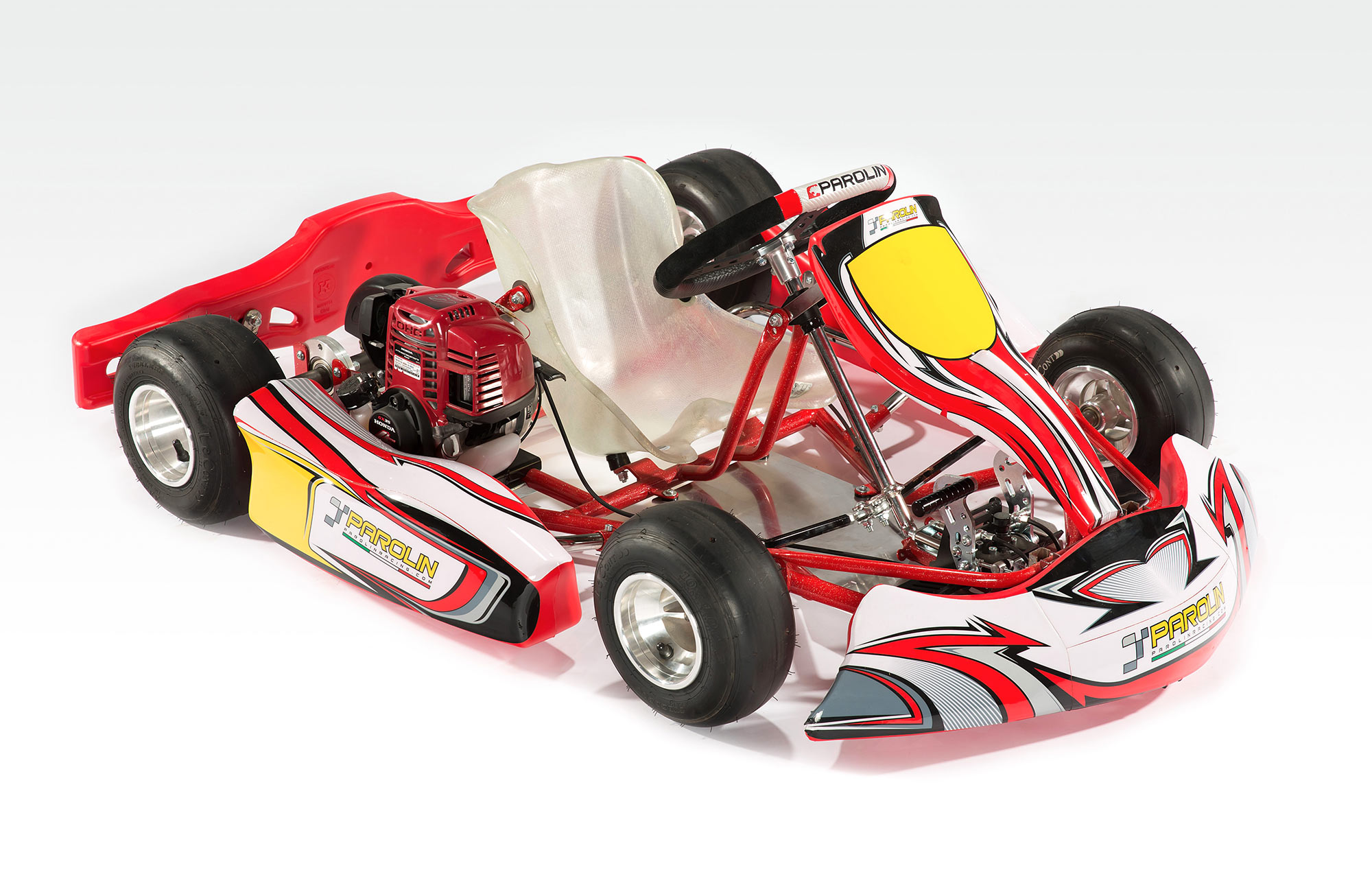

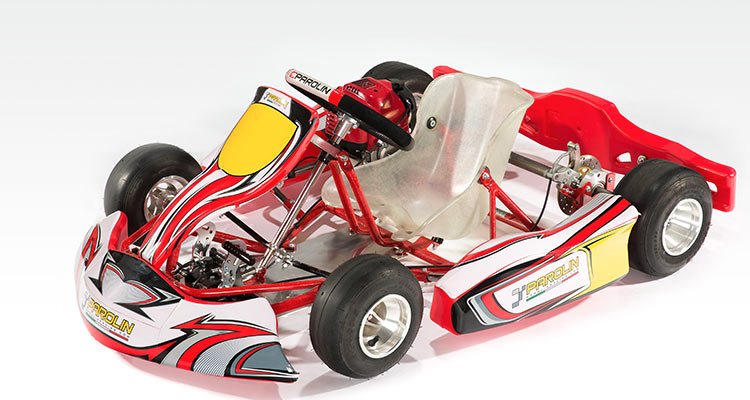

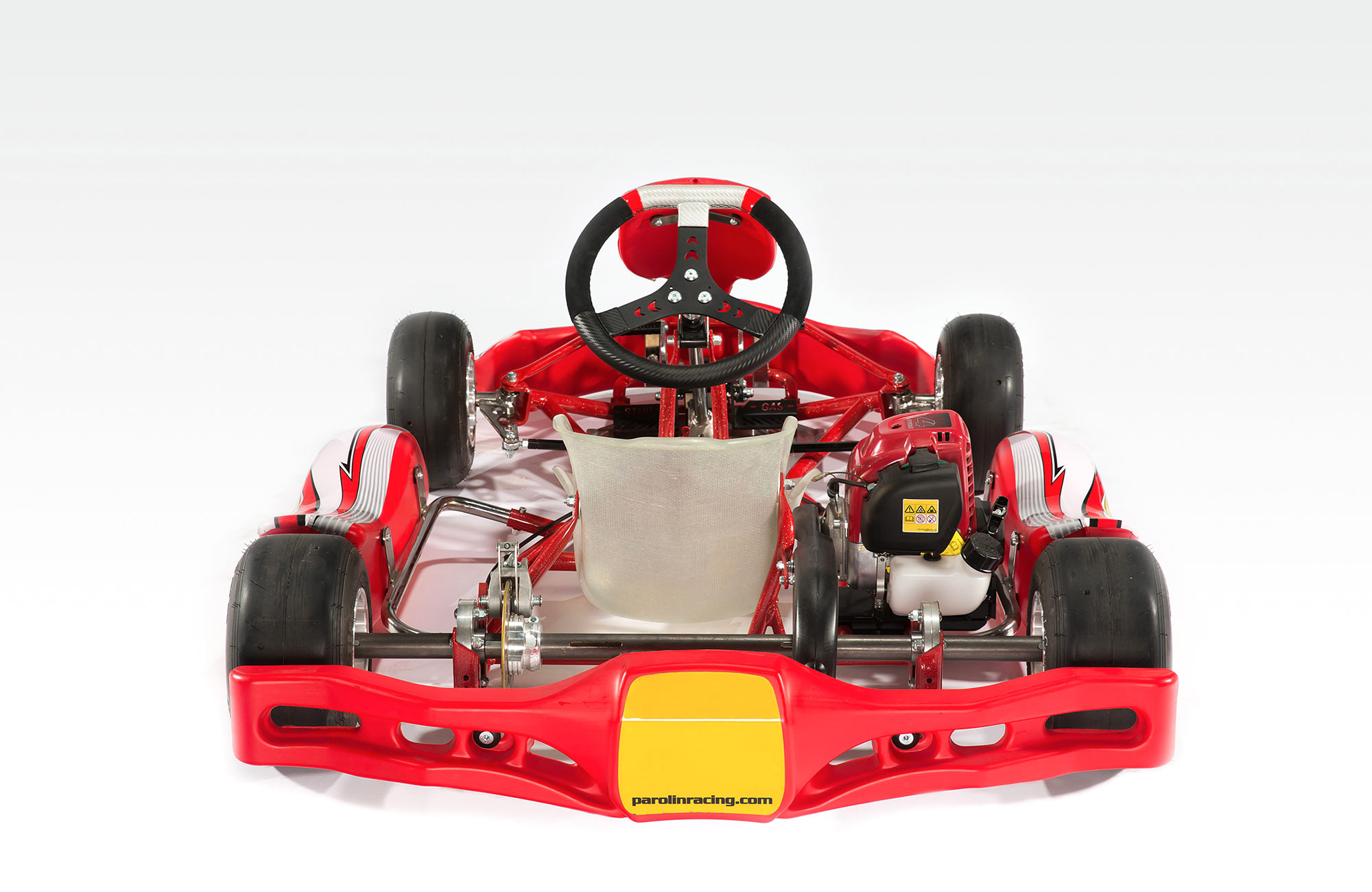

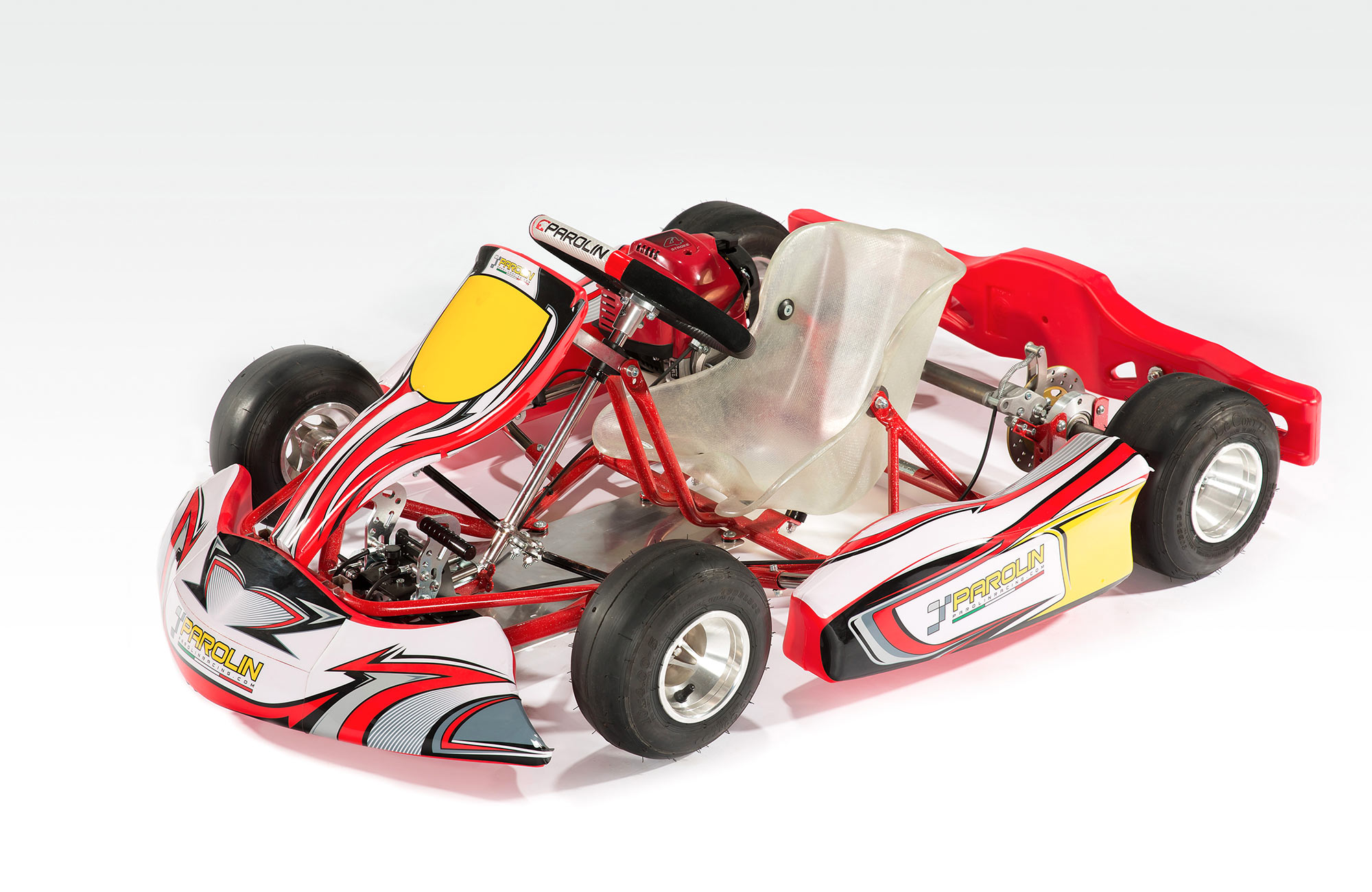

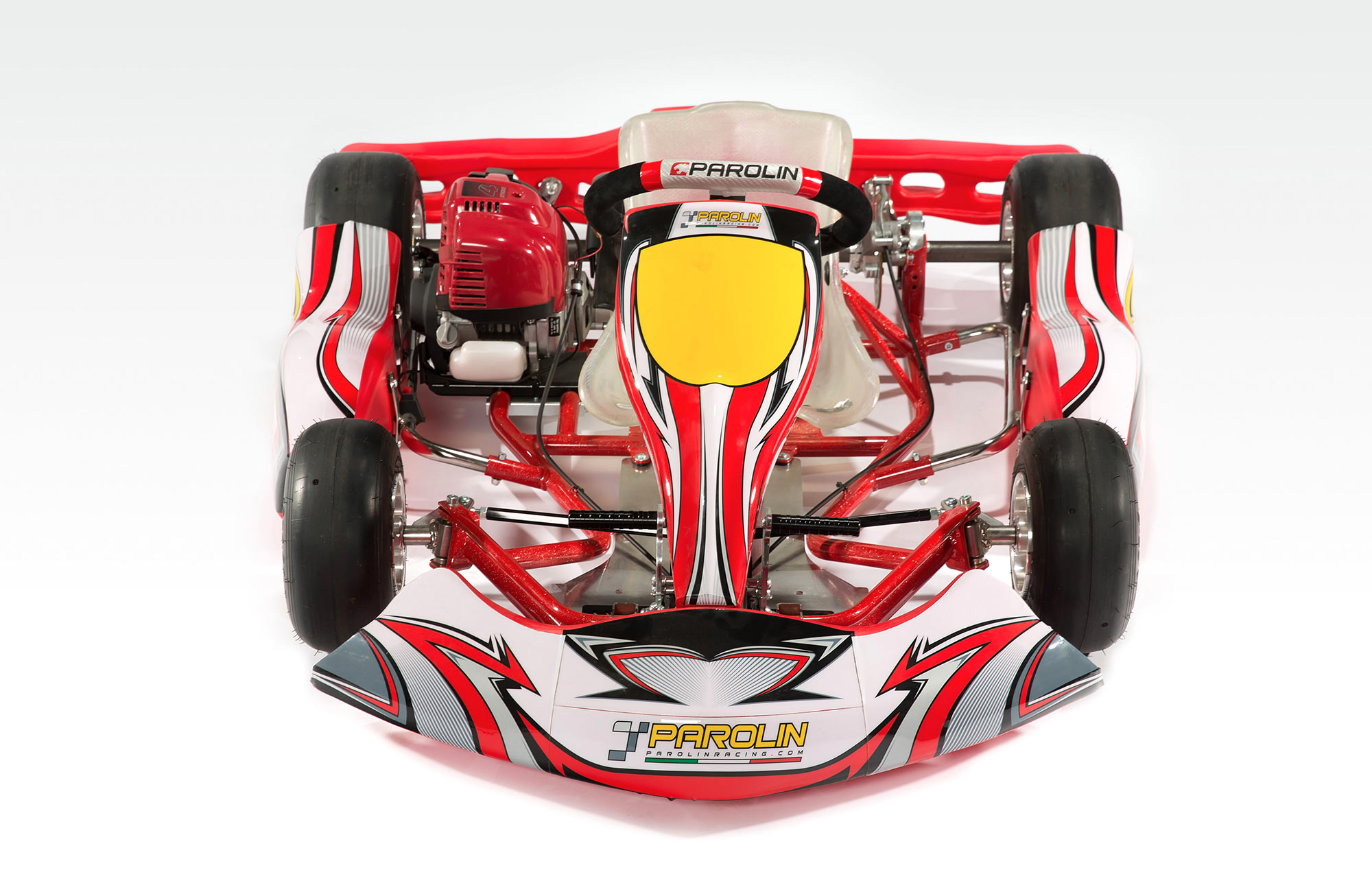

The Delfino is a complete kart equipped with a 35cc 4-stroke Honda engine and purposed to be easy to manage even for users without any mechanical experience. The frame is made of Ø 25mm tubes, the brake system is mechanical,
and it presents different types of driving position adjustments in order to adapt it to children of different heights. The kart is sold ready-mounted, full fairings and sticker kit. The kart Delfino is the ideal one for starting programs and driving schools.
| Delfino | |
|---|---|

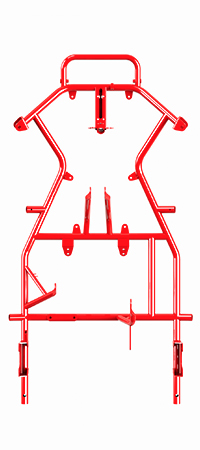

| Ø Tubes | 25 X2 mm steel |
| Axle | 30 mm solid |
| Bearings | 2 |
| Wheelbase | 800 mm |
| Brake system | Mechanical |
| Brake disc | Magnetic steel |
| Stub axles | Fixed and chromed |
| Bodywork | Csai 53/tb/09 |
| Rear bumper | Max tyres width |
| Steering wheel | 280 mm |
| Wheels | Alloy 110-140 mm |
| Front tyre | Academy-Vega 10×4.00-5 |
| Rear tyre | Academy-Vega 11×5.00-5 |

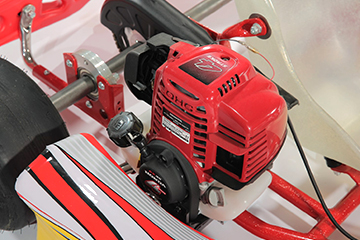

| Honda GX35 | |
|---|---|
| Horsepower | 35cc 4-stroke |
| Induction | Aspirated |
| Cooling | Air cooling |
| Bore | 39 mm x 30 |
| Compression ratio | 8,0:1 |
| Combustion chamber volume | 6cc,+2cc, tot ins. min:8cc |
| Max power | 1.0 kw (1.3 hp) / 7 000 t/min |
| Max torque | 1.6 nm / 0.16 kgfm / 5 500 t/min |
| Carburattor | D.12mm butterfly |
| Fuel | Green fuel |
| Fuel tank | 0,63 liter |
| Transmission | Centrifugal clutch, fixed gear |
| Starting | Pull |
| Ignition | Electronic e.i. |
| Exhaust | Carrier |
| Clutch | Centrifugal clutch, fixed gear |
EXTERNAL FAIRINGS
The external fairings give all-round protection of the kart against all types of blows.
