XT32 ELITE

Extreme heavy-duty rental kart capability

The Parolin XT32 is a state-of-the-art vehicle, which presents an extreme heavy-duty rental kart capability, while being conceived to perform. Tubes are cut and welded using laser technology machines and shaped with CNC fully automatic machines.
Easy-access bolts allow for the removal of the axle and the rear brake, adding to the vehicle's ease of maintenance and repair.

The clever rear engine location grants a comfortable drive position. The outside polymer bumpers, especially in indoor tracks, allow the vehicles to slide one against the other in case of collision. Bodywork, rear axle guards, and protective covers over the rotating parts are essential safety components. The roll bar and safety belts can be installed to give the driver extra protection.

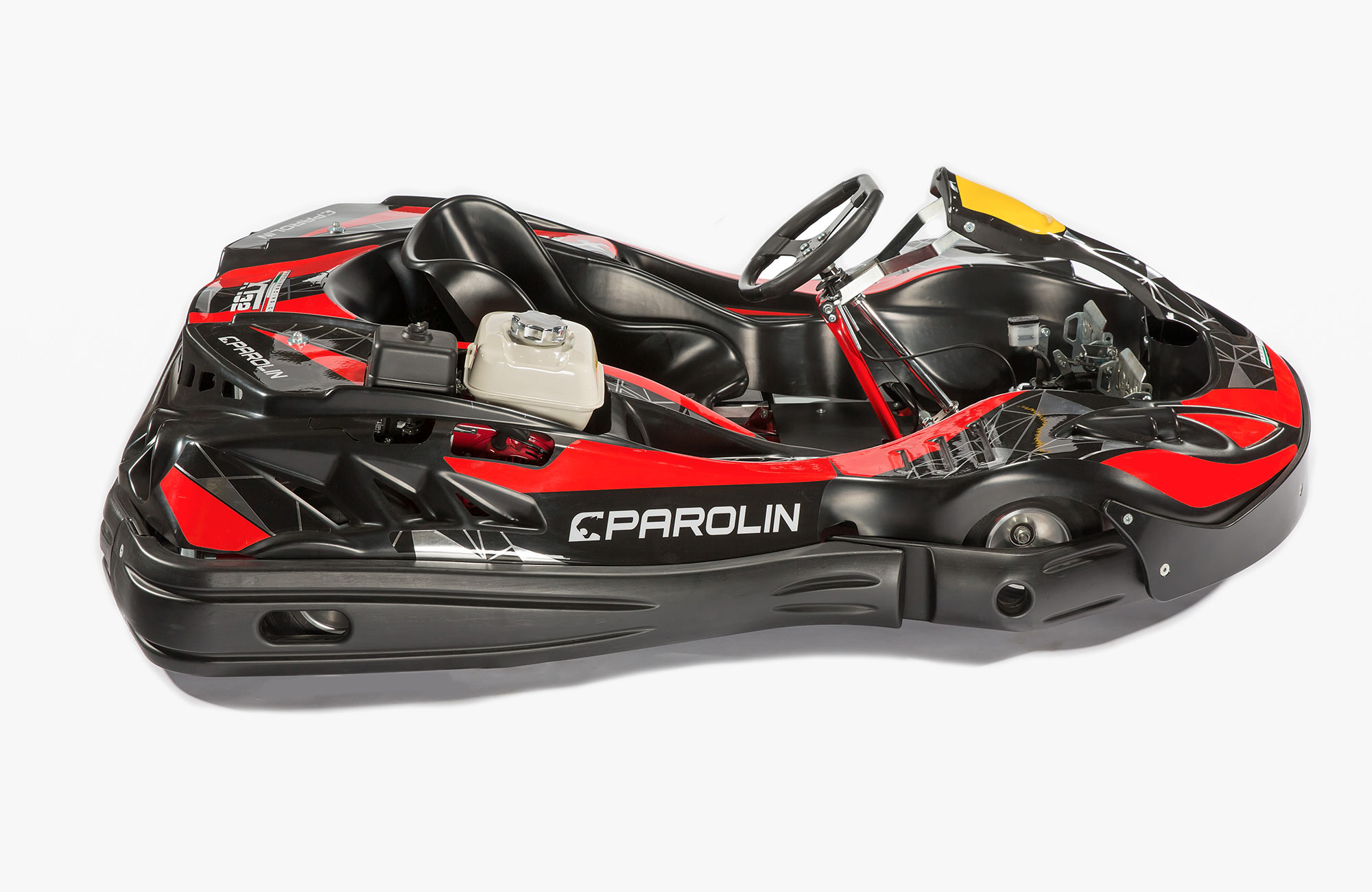

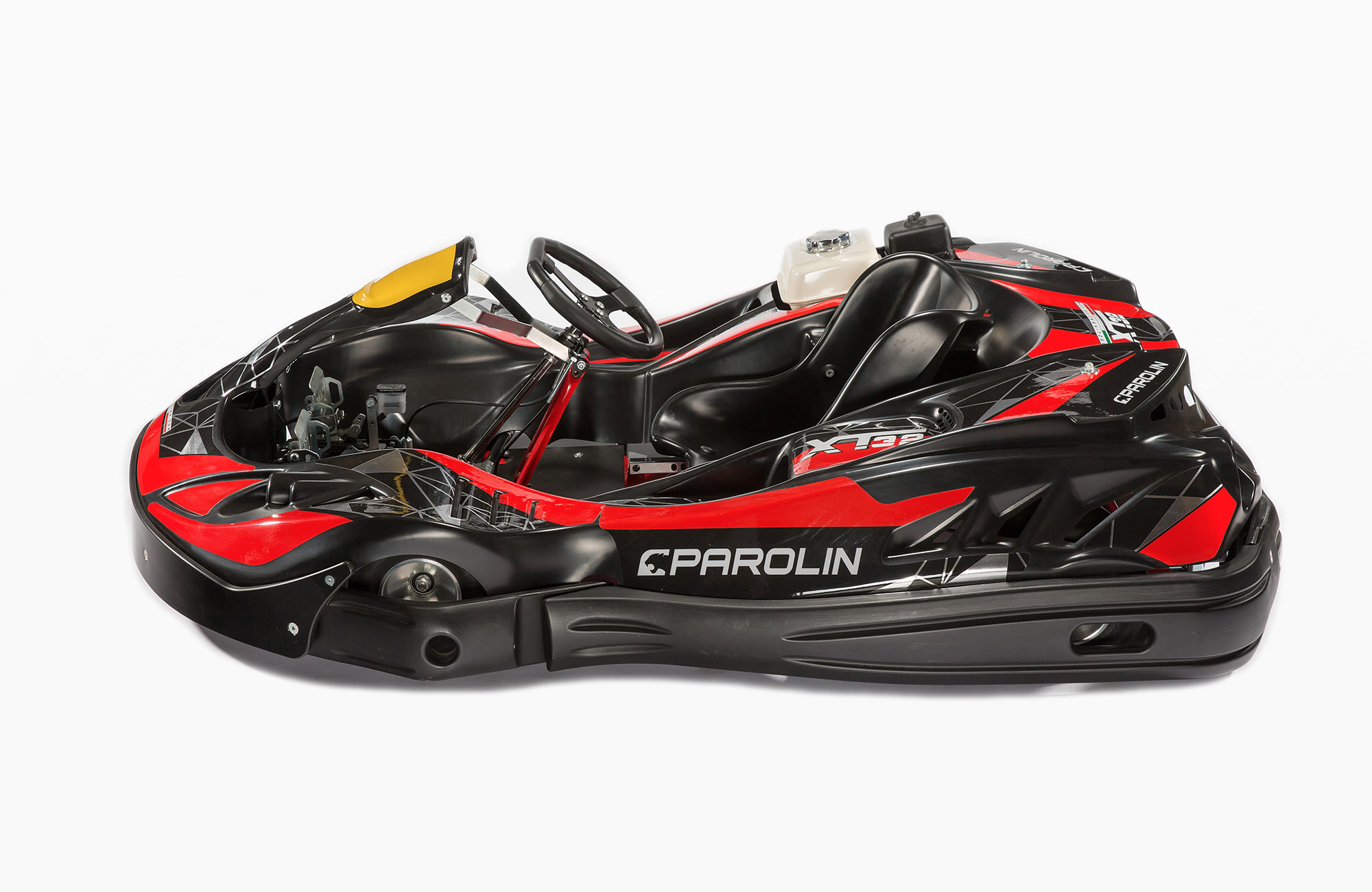

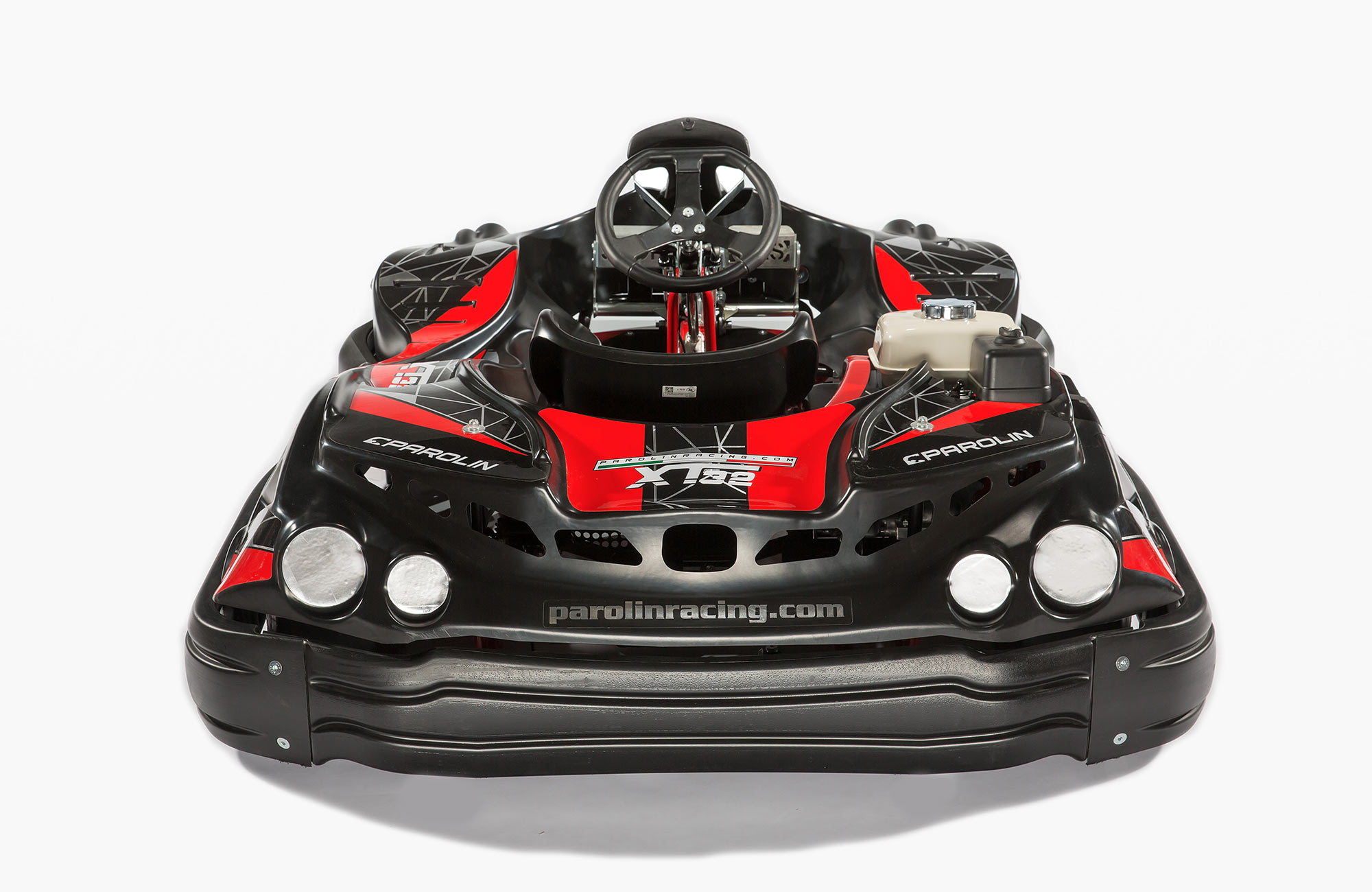

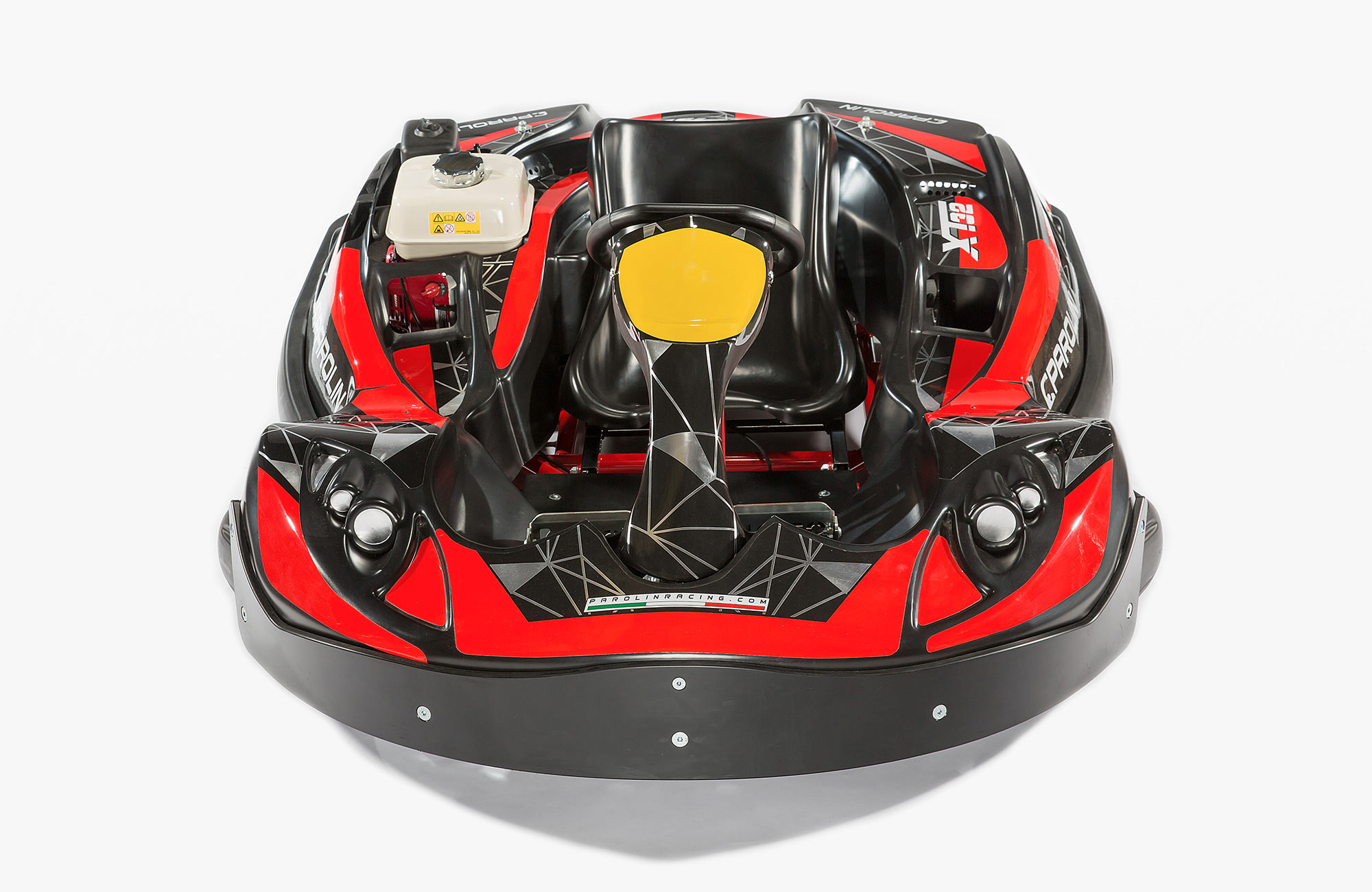

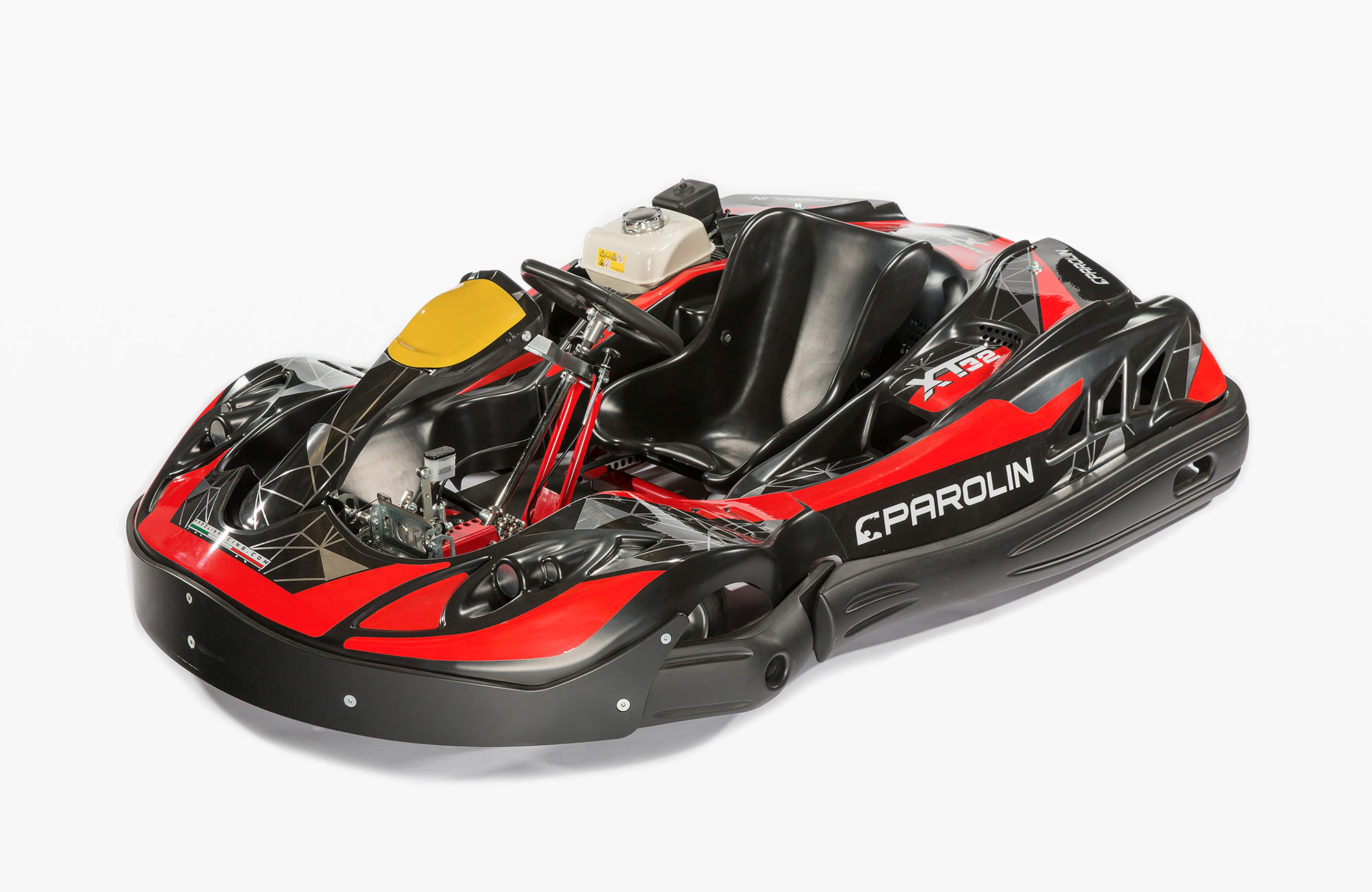

Gallery

TECHNICAL SHEET

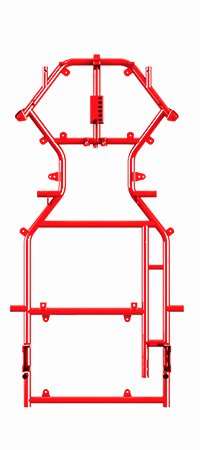

Parolin XT32
Chassis Code 99KIX32_PC
ø tubes 32x2mm Cr-Mo
Pitch 1030 mm
Total Width 1300 mm
Total Lenght 1800 mm
ø axle 40 x 5 x 1000 mm
Brake System Self-Adjusting
Rear brake disk 180 X 4 mm Steel (std.) 180 X 8 mm Steel (opt.)
Steering wheel 320 mm
Seat M or L Fiberglass (std.) Tillett covered (opt.)
Protections All-round special polymer bumpers Full Cover Bodyworks
Options
Engine Fiberglass Engine cover for the following engines EX21 Subaru GX200 Honda 270 External exhaust pipe kit complete with silencer (located under the rear axle cover) Belt and pulley kit (Specify n. of teeth) Chain and Sprocket kit ( specify n. of teeth ) Steel chain sprocket from 28 to 33 teeth, 428 Steel engine sprocket from 12 to 15 teeth, 428 Eurostar chain (428 HR ) Gasoline pump kit
Protections Roll bar and security belts
Wheel Wheel set 180 - 125 mm reinforced and heat treated aluminium with 20 mm Pin
Tires Bridgestone 10x3.60-5 / 11x6.00-5 10x4.50-5 / 11x7.10-5

OPTIONAL

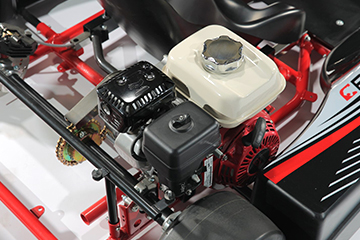

THREE DIFFERENT ENGINE DISPLACEMENTS

The XT32 Elite can be equipped with three different engines: Honda GX120, Honda GX160 and Honda GX200, Honda engines performance ensure reliability and long maintenance intervals.

BRAKE LIGHT

The "Brake Light" system allows you to know when a kart is braking. This system has a light, positioned on the rear of the kart, which switches on when the brake pedal is pressed.

REMOTE CONTROL

Remote control is a convenient tool that allows the adjustment of the speed of the entire fleet. The radio-controlled system increases safety and reduces the speed of the karts in any dangerous situations

ROLL BAR AND SAFETY BELTS

The Roll Bar, as well as the seat belts, raise the driver's protection to the maximum level in the event of a collision or overturning.

ICE VERSION

The "Ice Version" kit includes raised set-ups, studded tyres and snow protection of rotating parts. The changes to the chassis have been specially designed to maintain excellent driveability of the kart on icy slopes.

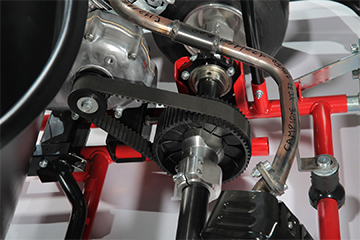

TRANSMISSION BELT

The belt drive allows longer maintenance intervals compared to the chain.

SAFETY

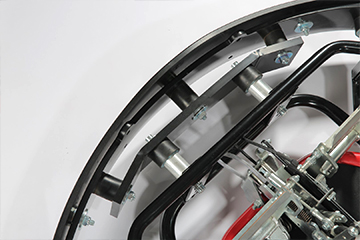

FRONT ABSORPTION SYSTEM

The front absorption system cushions frontal blows against the kart’s barriers. This safety feature reduces the blows received by the driver.

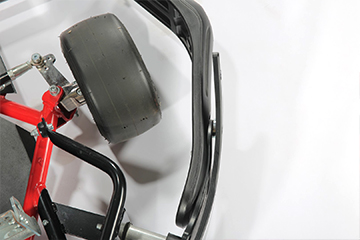

EXTERNAL FAIRINGS

The external fairings give all-round protection of the kart against any types of blows

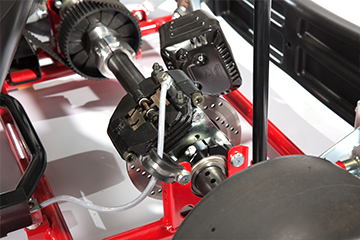

HYDRAULIC BRAKES

The hydraulic brake, derived from racing, ensures repeated braking without overheating the disc, which raises the vehicle’s safety level.

CONTACT US FOR...

Track Barriers

Create your circuit to the highest possible standards using our X-Safety Barrier protection system.

Timing System

You can also trust Parolin Racing Kart to supply you with a complete timing system suitable for your facility.

Circuit Design

Take advantage of our extensive experience in the world of rental karting and utilise it to design the perfect circuit suitable for your specific available area or site.
