TaG ECO

High-precision tube cutting and welding

Chassis are made of seamless special CrMo steel tubes of diameters 30 mm (1.18 in) and 32 mm (1.26 in). High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through state of the art CNC machines.

Components are obtained from best aluminium and magnesium solid pieces and then titanium anodized, the first being done with high-tech fully automatized machines and held to tight tolerances. All these operations are performed within Parolin Racing Kart’s facilities.

Wheelbase ranges from 1045 to 1050 mm (see chart below). Stub axles are cut from a single steel piece. Ackerman geometry, camber and caster are easily adjustable thanks to the innovative Eurostar eccentric system. Pedals are made of aluminium and present an ultra-low friction attachment system that provides enhanced sensibility.

Brakes are hydraulic self-adjusting CIK FIA homologated AP RACE 06. Rear brake rotor is 194 x 18 mm or 199,5 x 12 mm in diameter, all made of Cast Iron and ventilated. Optional hand operated front brake is available. Brakes, as all components, are produced within our facilities.

It presents front and rear removable stabilizer bars in order to adjust the rigidity parameters.

Rear axle is supported by three bearings with special cassettes and is 50 mm (1.97 in) in diameter. Optional 40 mm (1.57 in) is available.

The seat is manufactured in fiberglass and engineered using the latest ergonomic techniques. It also presents a controlled torsional stiffness.

The new aerodynamic streamlined bodyworks Eurostar Dynamica and Wings are performed within Parolin Racing Kart's facilities.

Wheels are 210/130, made of magnesium, anodized, heat-treated and present a triple bead retention system. It presents right-left extra seat supports.

The anatomic steering wheel is mod. Motorsport 322 mm (12.68 in) aluminum made.

Chassis are powder coated in Parolin red color.

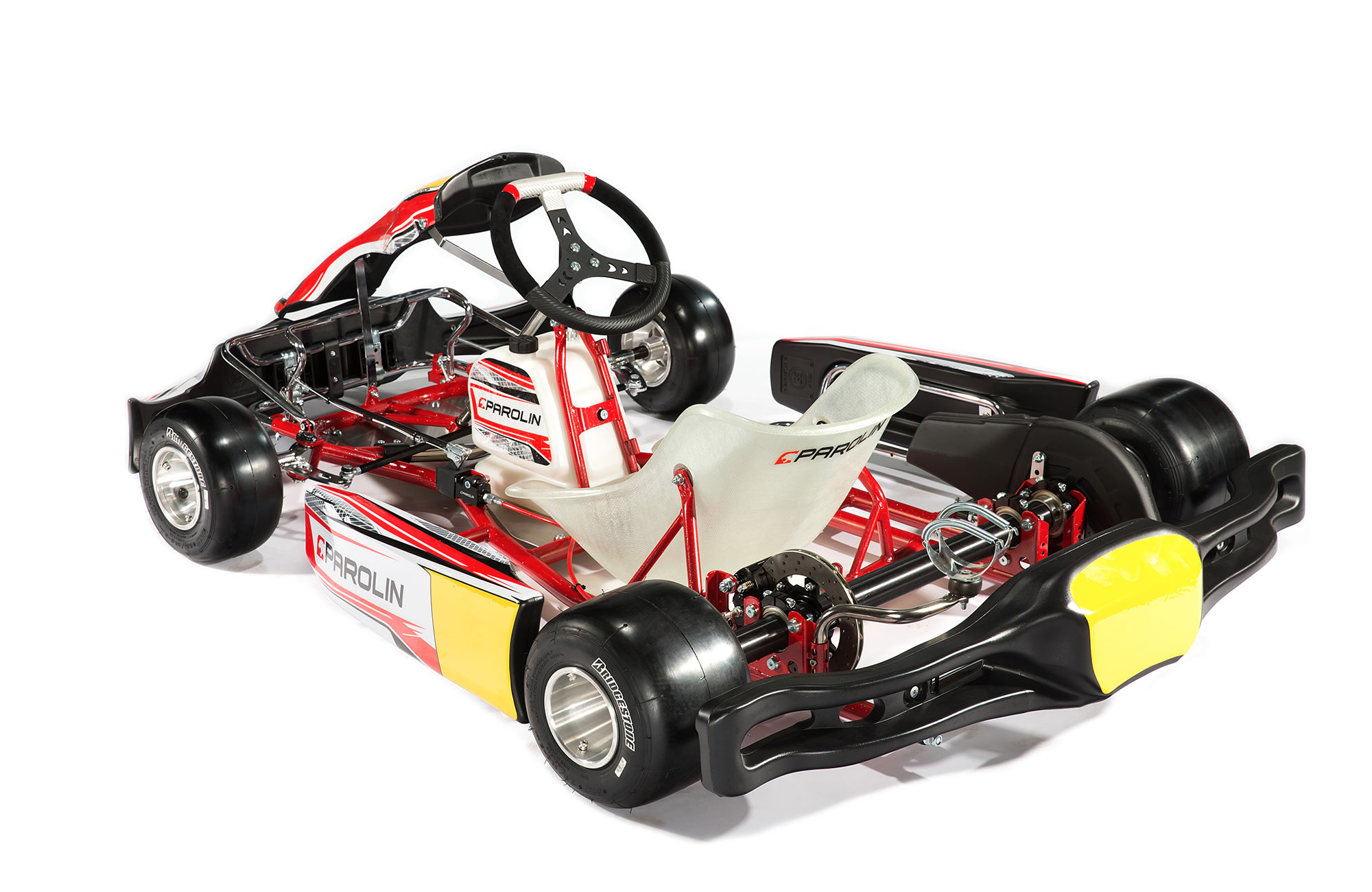

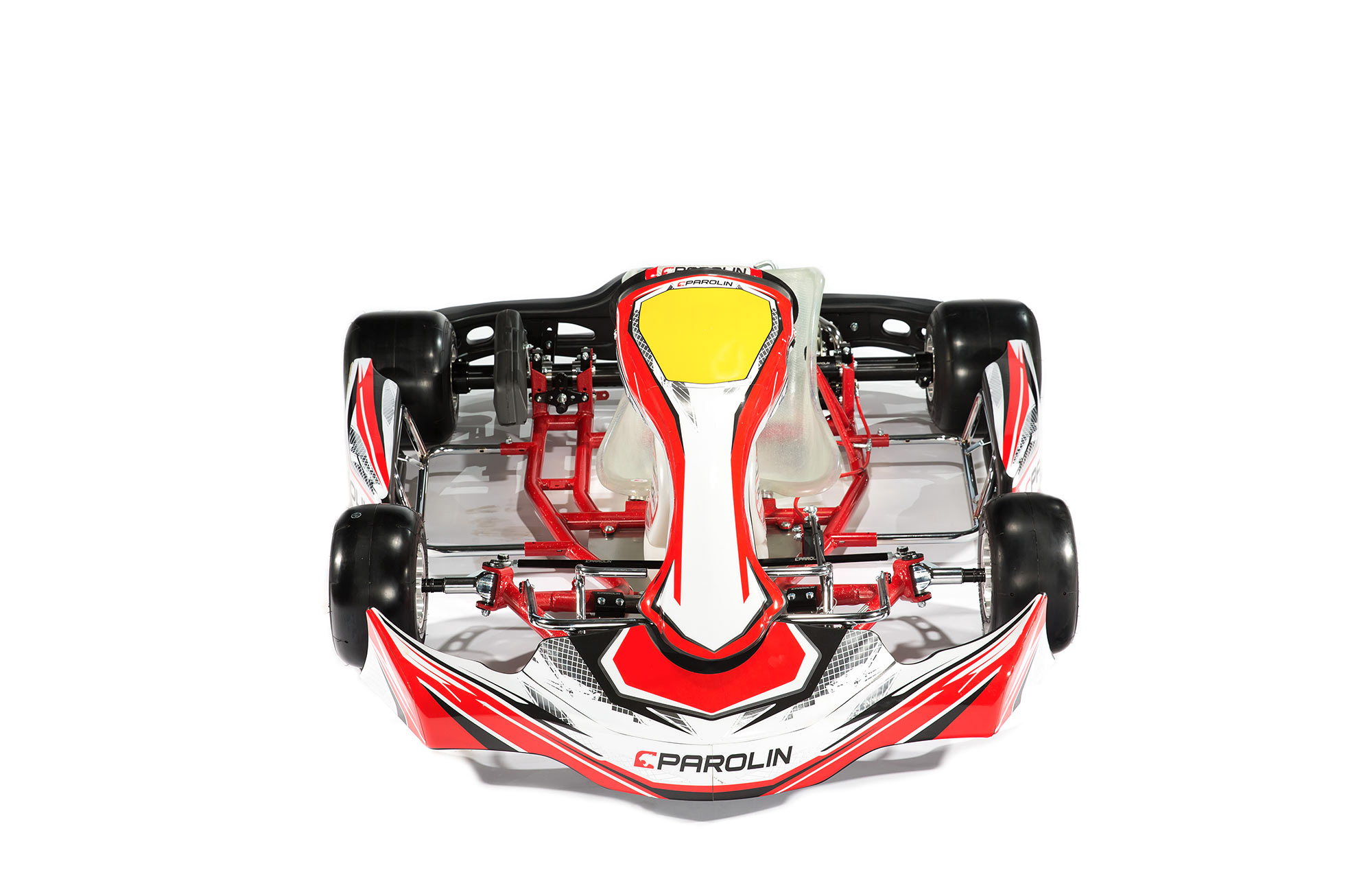

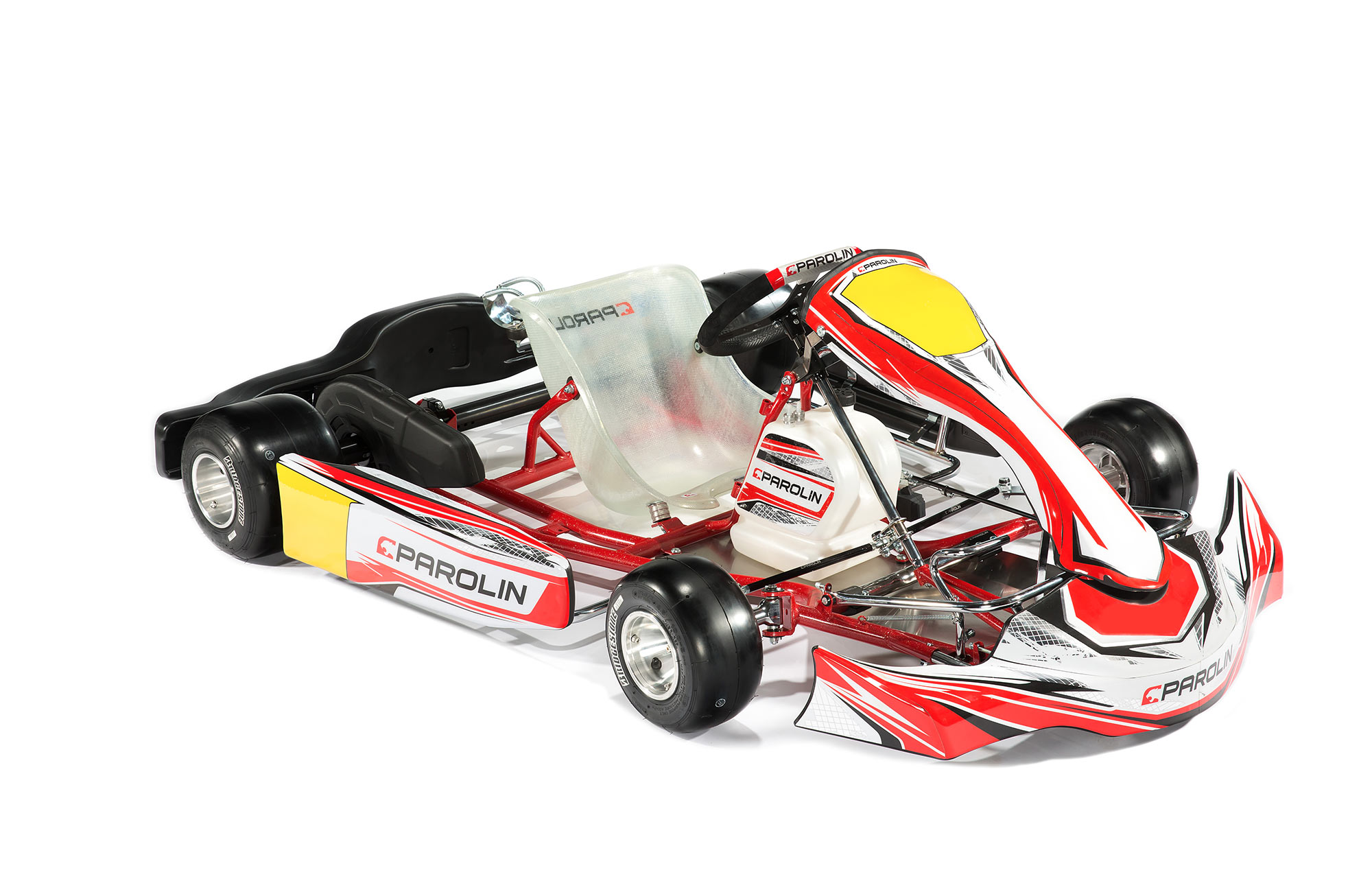

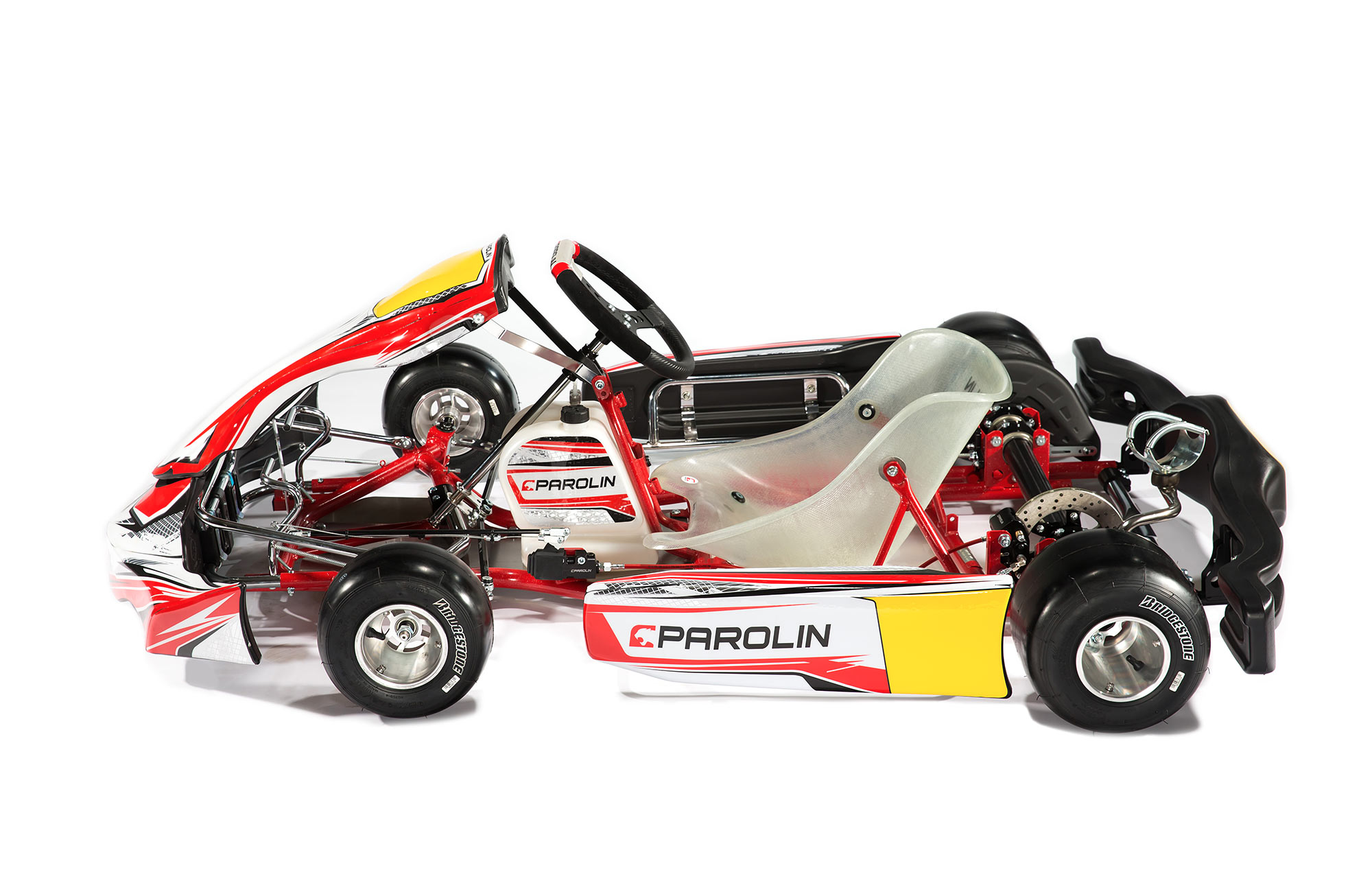

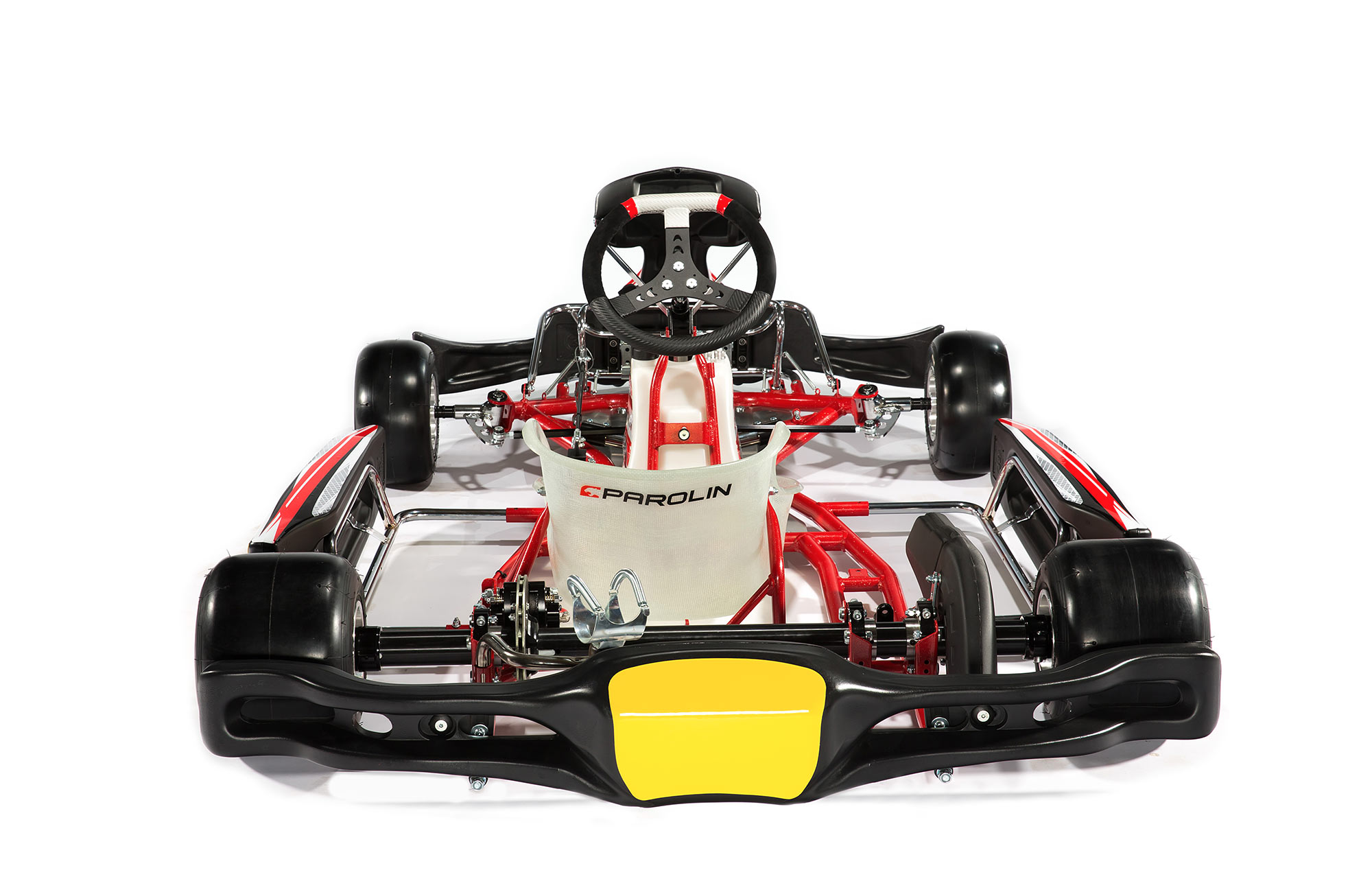

Gallery

TECHNICAL SHEET

Version Code 99KMC0_P
Montecarlo Basic Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1045 mm
Rear width 648 mm
Front width 722 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214-1/FR/08
Brake position standard
Rear brake disk ventilated 199,5x12 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation NO
Version Code 99KMC0M_P
Montecarlo Motorsport Version
Ø Tubes and material 32-32 x 2 - 25 cr-mo4
Wheel base 1045 mm
Rear width 648 mm
Front width 722 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214-1/FR/08
Brake position standard
Rear brake disk ventilated 199,5x12 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation NO

HIGH FIDELITY

Intrinsicly formulate scalable web services before fully researched methodologies.

HIGH FIDELITY

Intrinsicly formulate scalable web services before fully researched methodologies.

STEERING COLUMN SUPPORT WITH ADJUSTABLE ACKERMANN

The steering column support includes an Ackermann angle adjustment system that allows it to be changed in a few simple steps.
