XT40 SMART

A kart capable to meet different customers' needs

Several years of experience in rental karts led the Parolin technical department to build a kart capable to meet different customers' needs. The XT40 Line is the result of a long period of research and development, which is concretized nowadays in the XT40 Smart and XT40 Elite variants. Enjoyable to drive thanks to its comfort and lightness, the XT40 line presents a wide possibility of drive adjustment and an extreme ease of maintenance for the track owner.

Another remarkable feature of the XT40 is robustness, essential on current rental karts, but without compromising its good looking and aerodynamic aesthetics. Totally built inside Parolin facilities with fine raw materials and ultimate technologies, this product represents the apex of the Company's rental range.

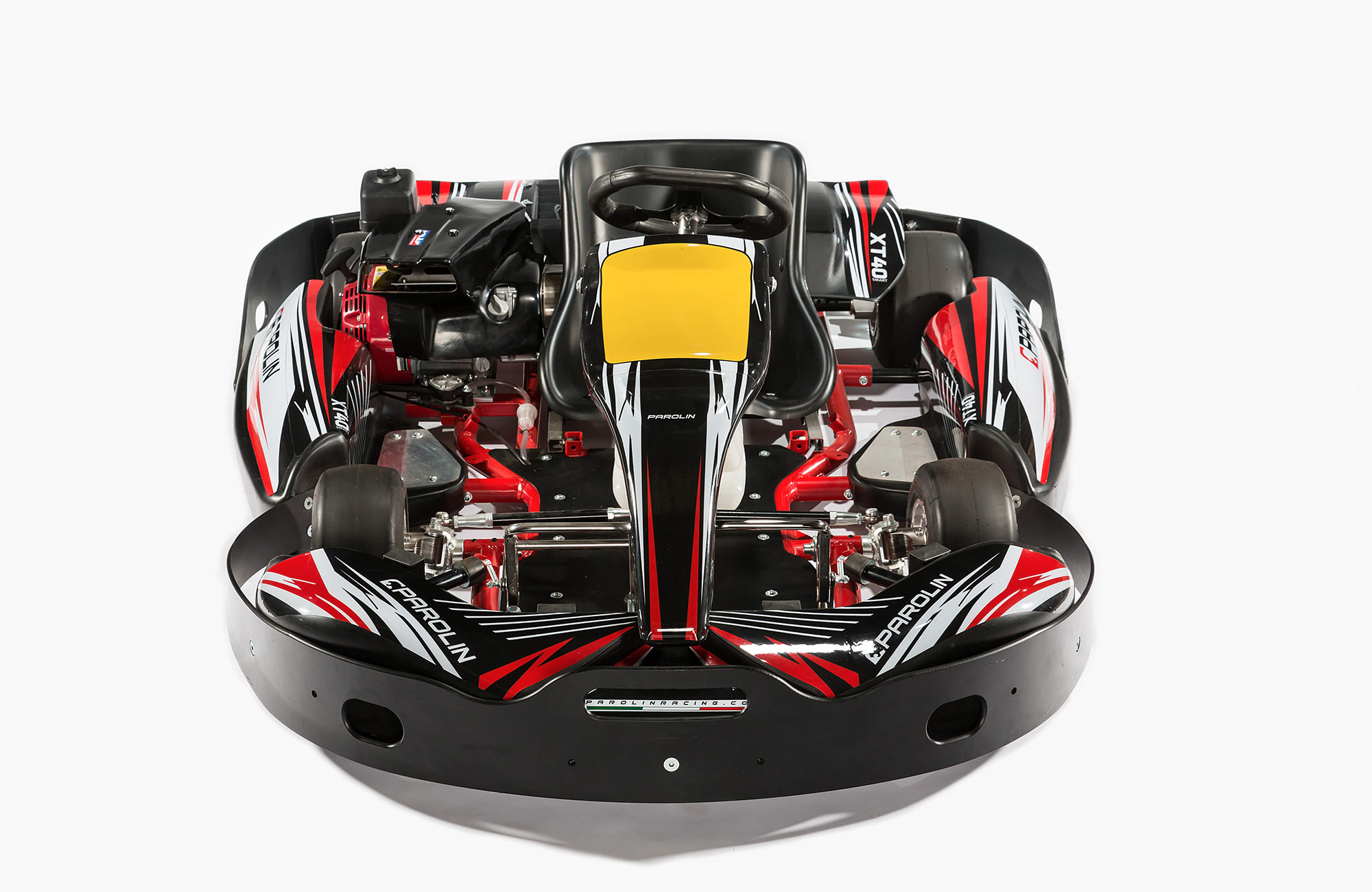

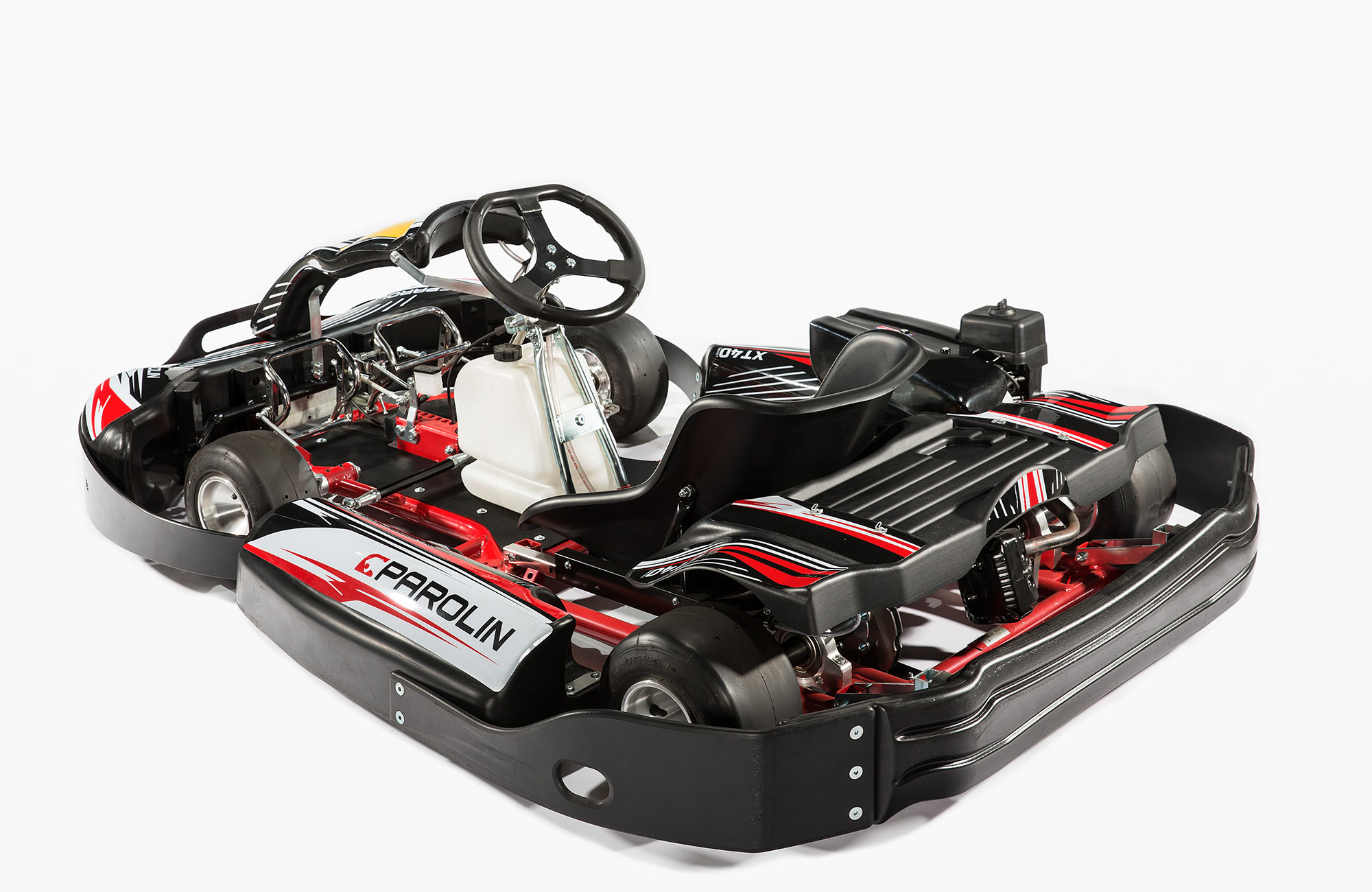

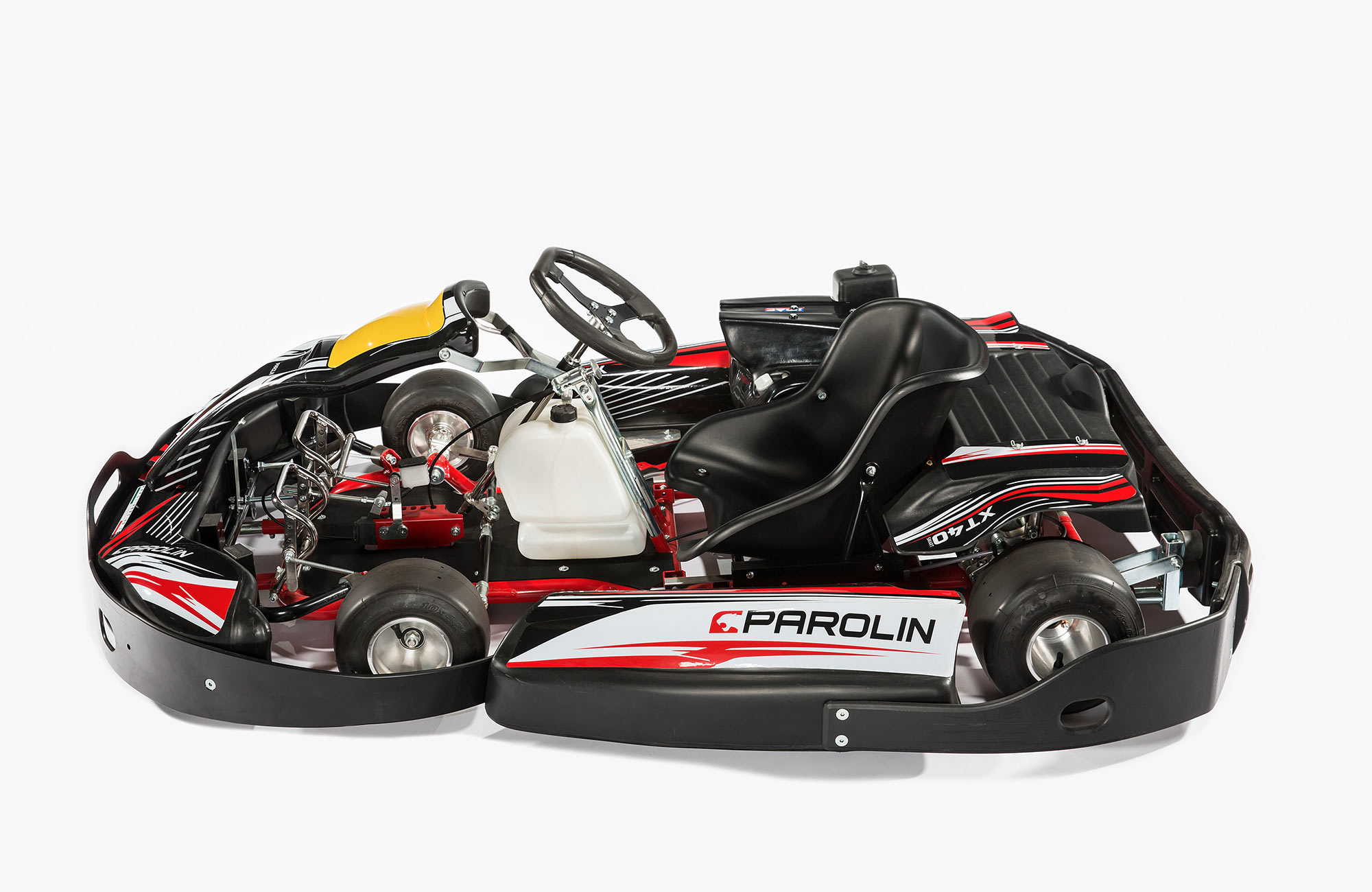

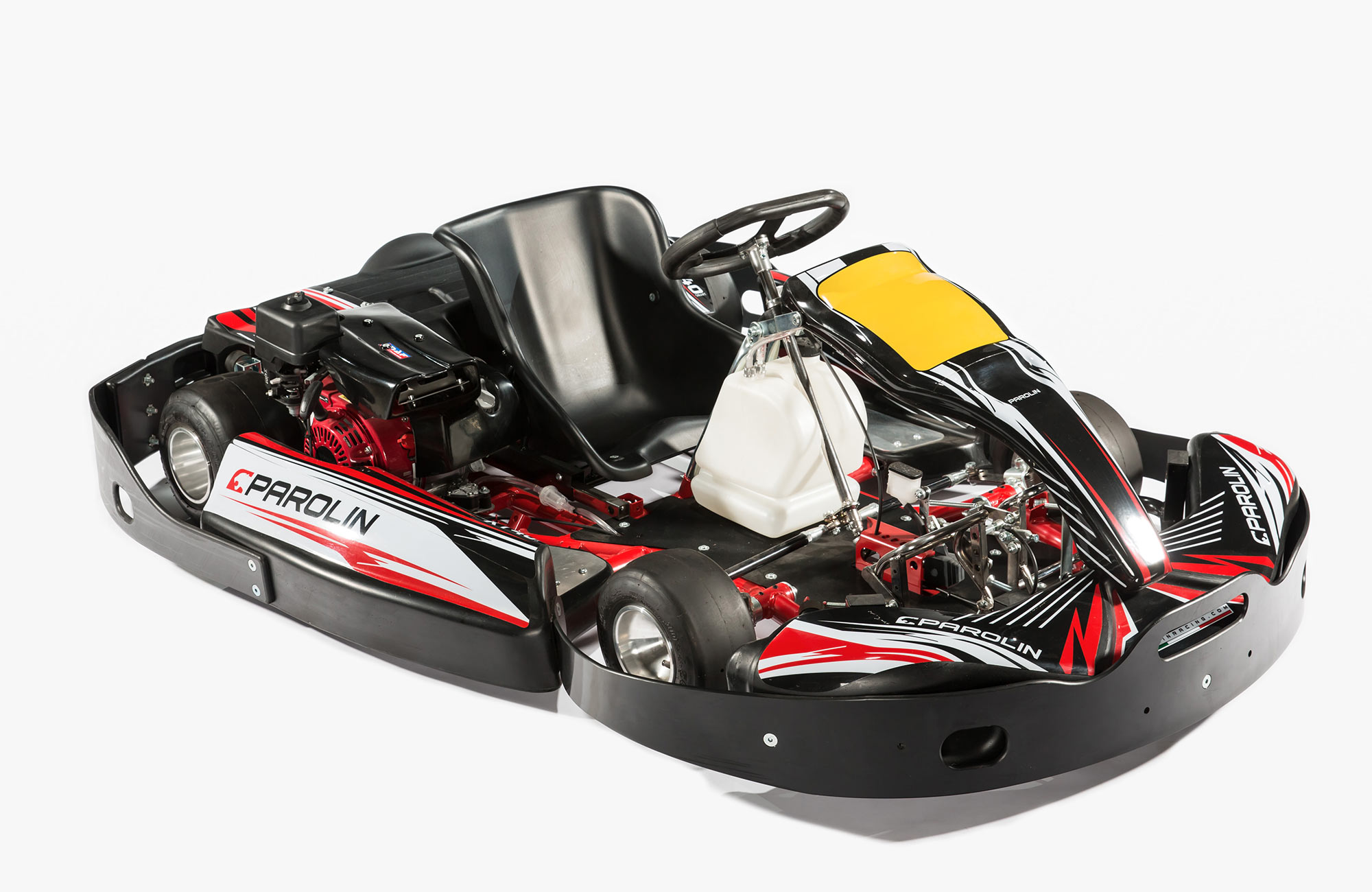

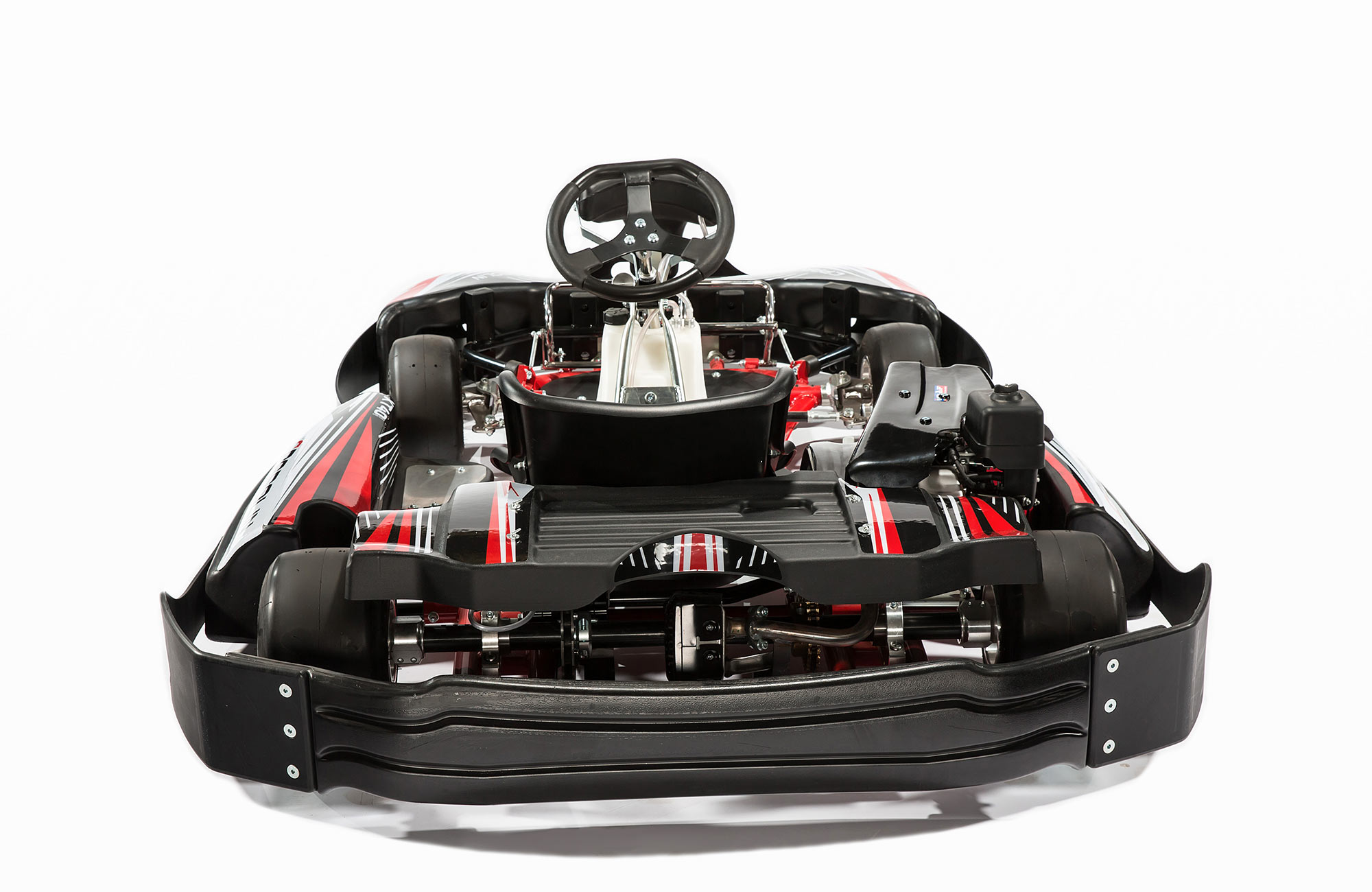

Gallery

TECHNICAL SHEET

Parolin XT40

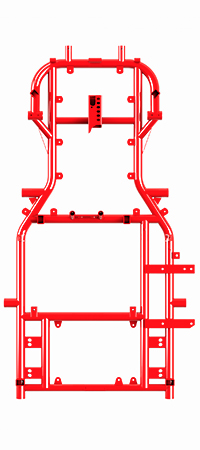

Chassis Code 99KIXT_C
ø tubes 40x2mm Cr-Mo
Pitch 1060 & 1080 mm
Total Width 1470 mm
Total Lenght 2020 mm
ø axle 40 x 1040 mm (std.)
Axle Bearings 2 sb210/06
Brake System Self-Adjusting
Rear brake disk 180 X 4 mm Steel (std.) 180 X 8 mm Steel (opt.)
Steering wheel 320 mm (std.)
Seat M or L Fiberglass (std.) Tillett covered (opt.)
Protections Roll bar and security belts Bodyworks All-round special polymer bumpers
Options
Engine Briggs&Stratton Ex21 Subaru Ex27 Subaru Gx200 Honda Gx270 Honda Gx390 Honda Belt and pulley kit (Specify n. of teeth) Chain and Sprocket kit ( specify n. of teeth ) Steel chain sprocket from 28 to 33 teeth, 428 Steel engine sprocket from 12 to 15 teeth, 428 Eurostar chain (428 HR ) Gasoline pump kit
Protections Anti-slip surface floor tray
Wheel Wheel set 180 - 125 mm reinforced and heat treated aluminium with 17mm standard or 20 mm opt. Pin
Tires Bridgestone 10x3.60-5 / 11x6.00-5 10x4.50-5 / 11x7.10-5
Weight Weight box kit 5 - 10 -15 kg

OPTIONAL

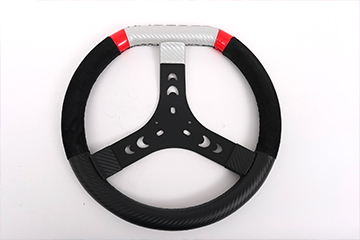

340 MM RACING STEERING WHEEL

The 340 mm diameter racing steering wheel improves kart driving. Thanks to its increased diameter, it facilitates steering and reduces driving fatigue.

OFF BUTTON

Easy to reach in any situation, the shutdown button allows the kart’s engine to be switched off in emergency situations.

ROLL BAR AND SAFETY BELTS

The Roll Bar, as well as the seat belts, raise the driver's protection to the maximum level in the event of a collision or overturning.

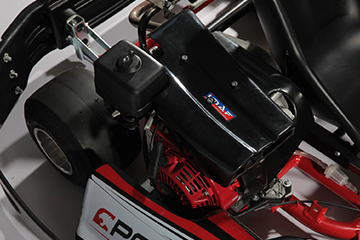

FIVE DIFFERENT ENGINE DISPLACEMENTS

The XT40 Smart can be equipped with five different engines: Honda GX120, Honda GX160, Honda GX200, Honda GX270 and Honda GX390. Honda engines performance ensure reliability and long maintenance intervals.

LEAD KIT

The lead kit uniforms the weight of all the karts in the fleet. This system gives the same kart performance levels for each driver.

SAFETY

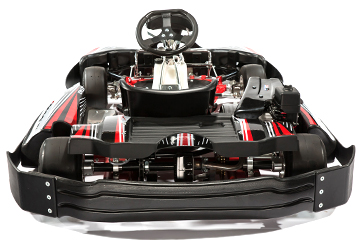

AXLE FAIRINGS

The fairings cover the axle and transmission parts, a safety feature which avoids any type of contact of the moving parts with the pilot. The coupling system has been designed for quick dismantling during vehicle maintenance activities.

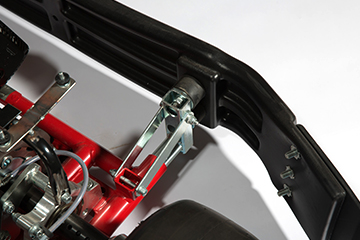

EXTERNAL FAIRINGS

The external fairings give all-round protection of the kart against any types of blows

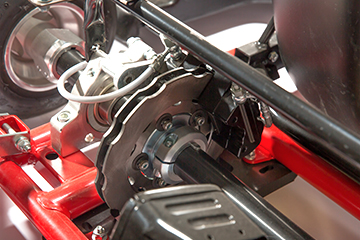

HYDRAULIC BRAKES

The hydraulic brake, derived from racing, ensures repeated braking without overheating the disc, which raises the vehicle’s safety level.
