High-precision tube cutting and welding

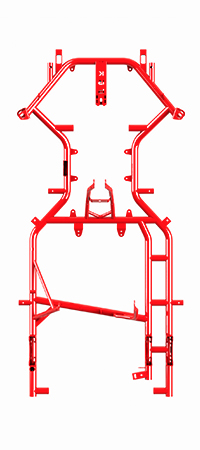

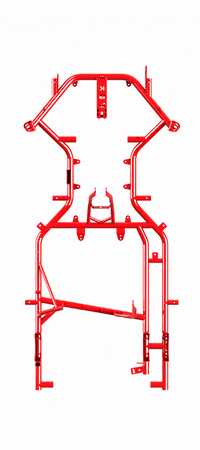

Chassis are made of seamless special CrMo steel tubes of diameters 30 mm (1.18 in) and 32 mm (1.26 in). High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through state of the art CNC machines.

Components are obtained from best aluminium and magnesium solid pieces and then titanium anodized, the first being done with high-tech fully automatized machines and held to tight tolerances. All these operations are performed within Parolin Racing Kart’s facilities.

Wheelbase ranges from 1045 to 1050 mm (see chart below). Stub axles are cut from a single steel piece. Ackerman geometry, camber and caster are easily adjustable thanks to the innovative Eurostar eccentric system. Pedals are made of aluminium and present an ultra-low friction attachment system that provides enhanced sensibility.

Brakes are hydraulic self-adjusting CIK FIA homologated AP RACE 06. Rear brake rotor is 194 x 18 mm or 199,5 x 12 mm in diameter, all made of Cast Iron and ventilated. Optional hand operated front brake is available. Brakes, as all components, are produced within our facilities.

It presents front and rear removable stabilizer bars in order to adjust the rigidity parameters.

Rear axle is supported by three bearings with special cassettes and is 50 mm (1.97 in) in diameter. Optional 40 mm (1.57 in) is available.

The seat is manufactured in fiberglass and engineered using the latest ergonomic techniques. It also presents a controlled torsional stiffness.

The new aerodynamic streamlined bodyworks Eurostar Dynamica and Wings are performed within Parolin Racing Kart's facilities.

Wheels are 210/130, made of magnesium, anodized, heat-treated and present a triple bead retention system. It presents right-left extra seat supports.

The anatomic steering wheel is mod. Motorsport 322 mm (12.68 in) aluminum made.

Chassis are powder coated in Parolin red color and are CIK FIA homologated.

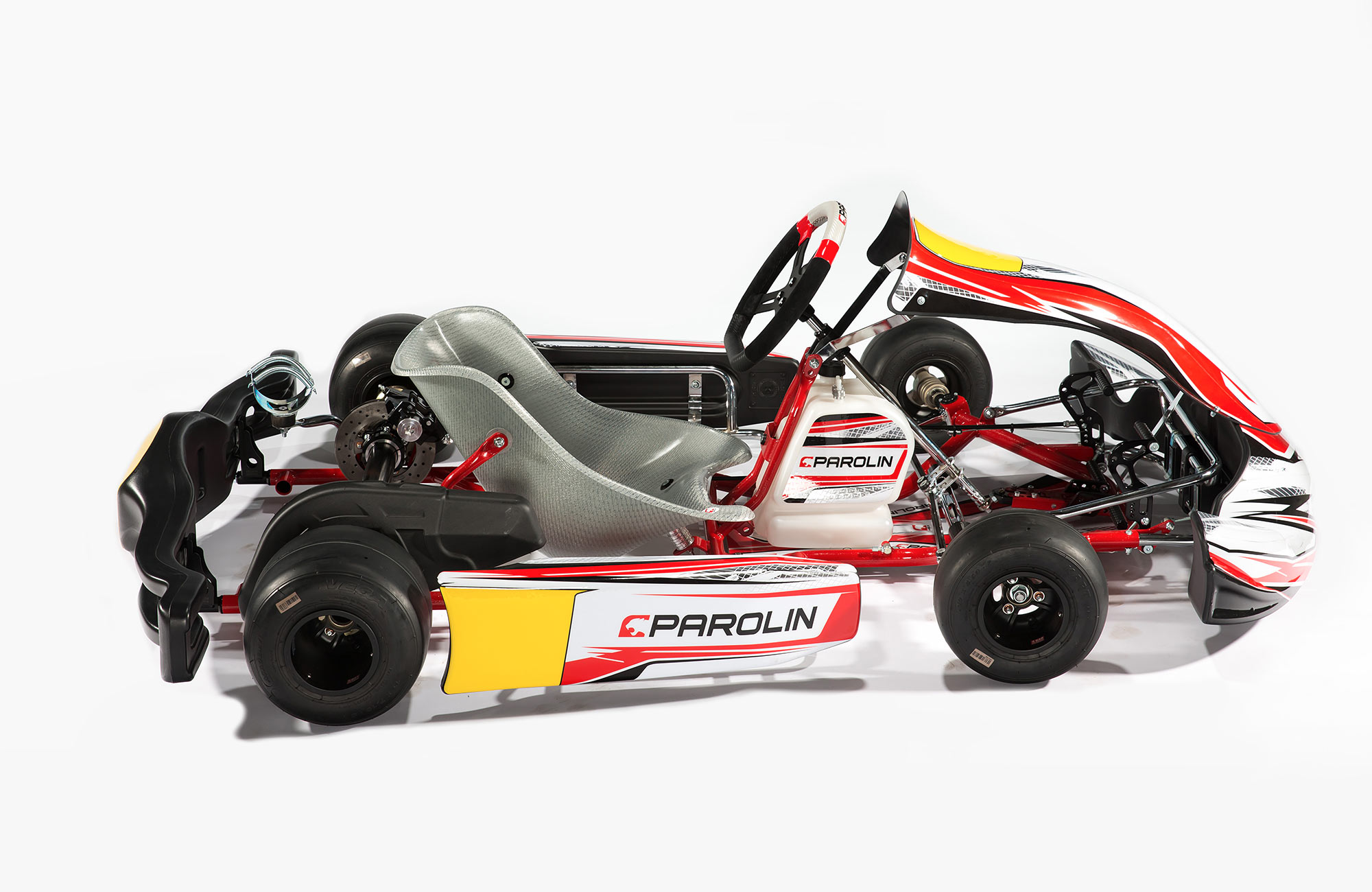

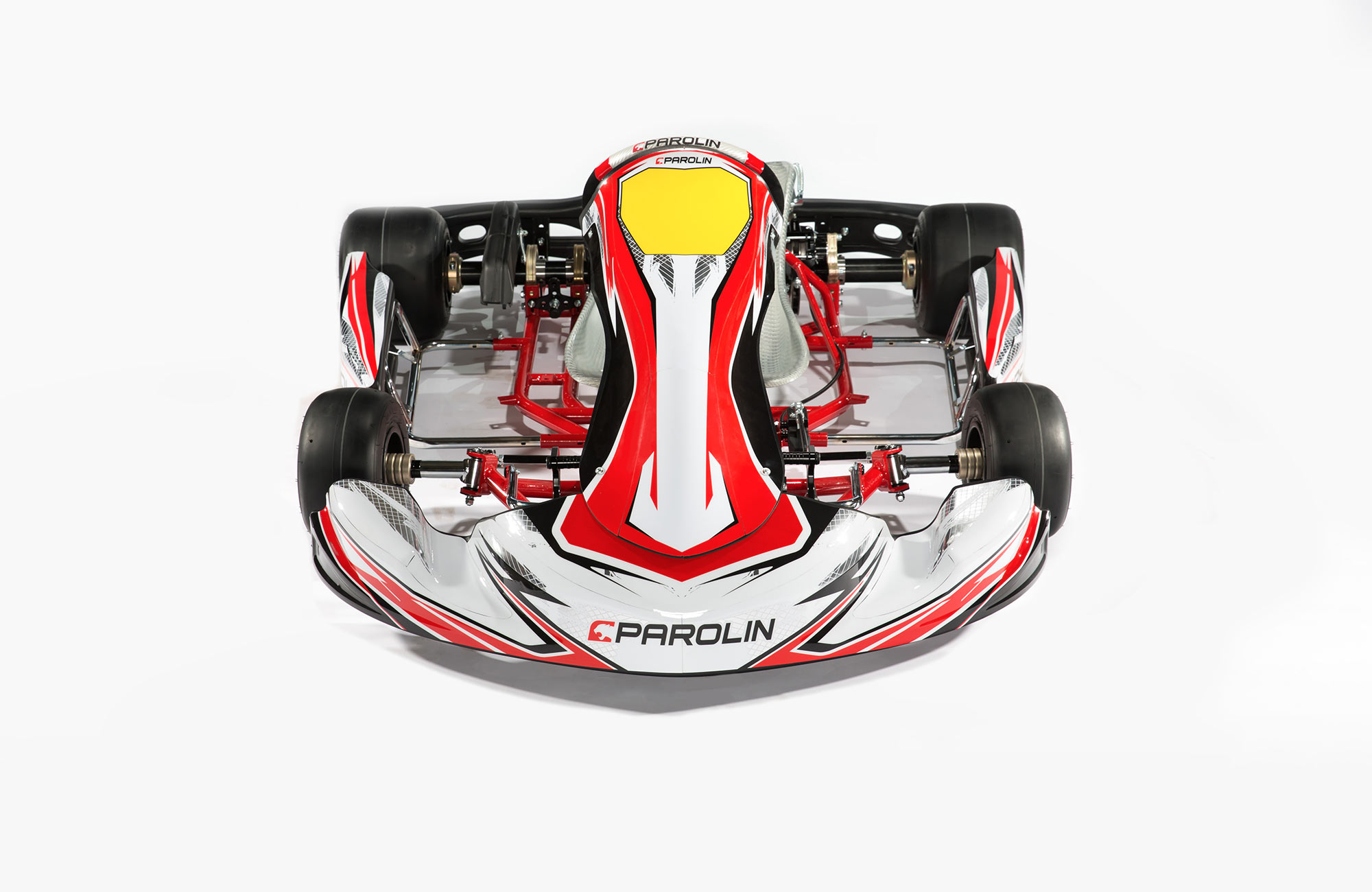

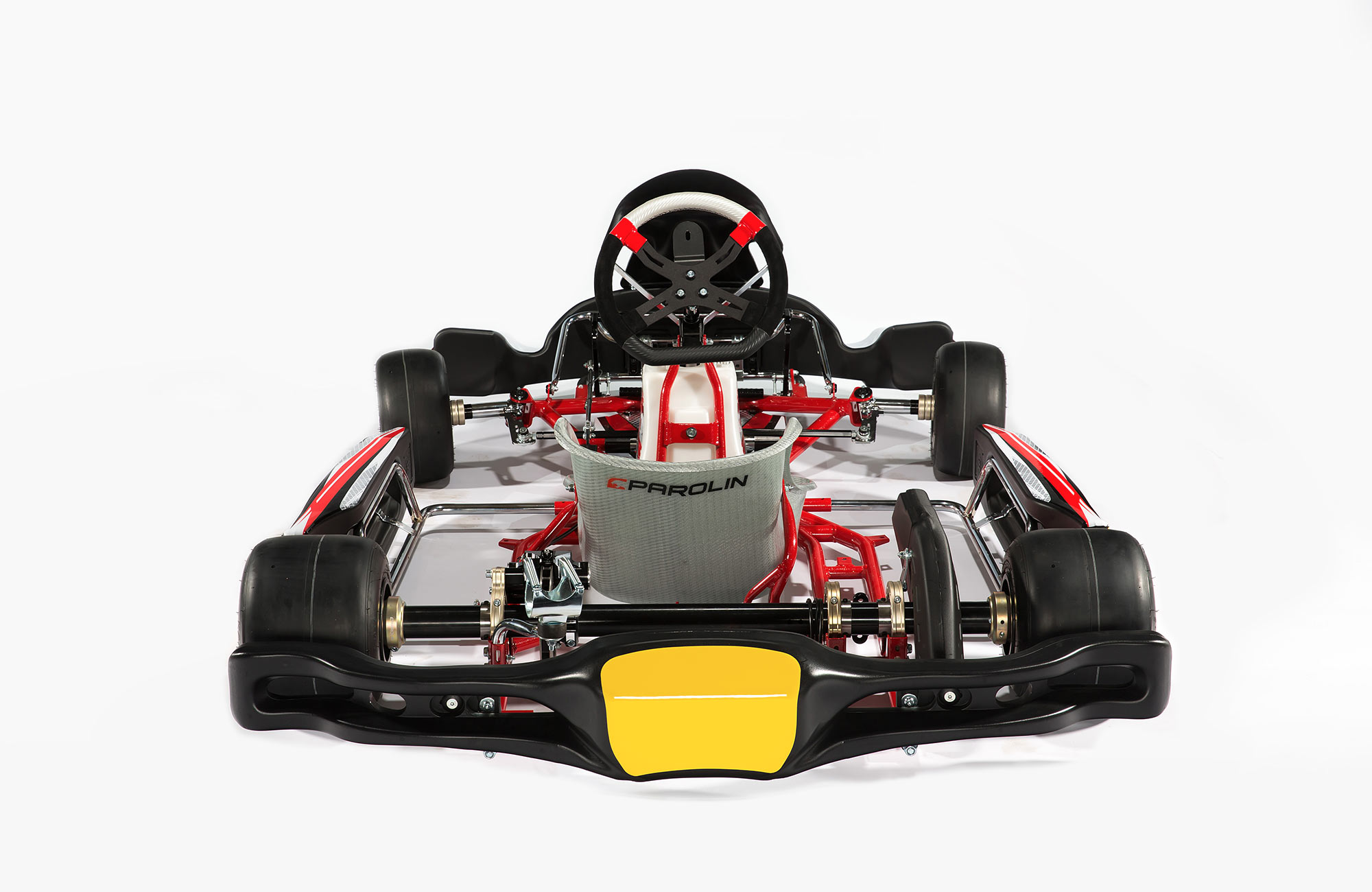

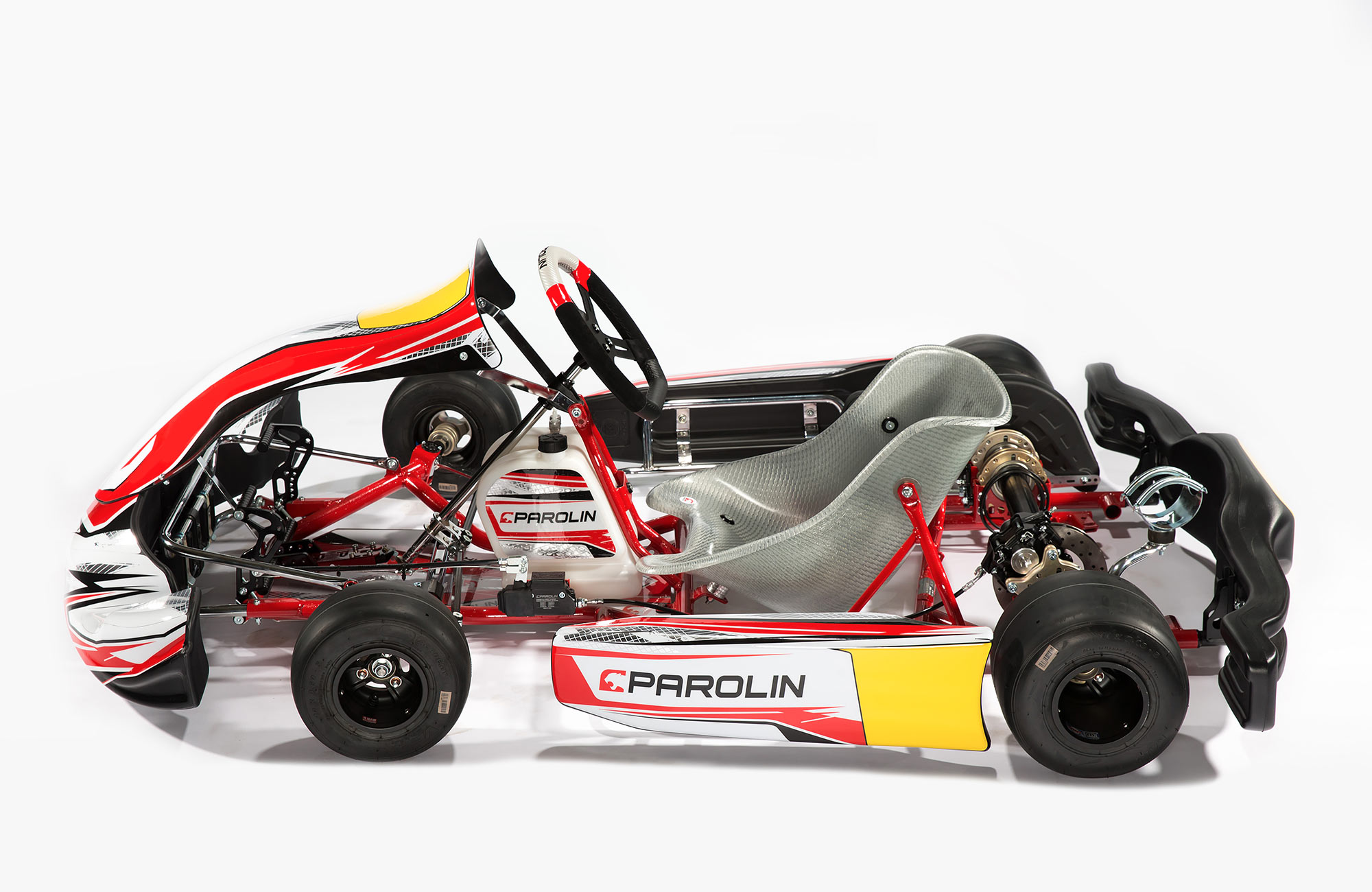

Gallery

TECHNICAL SHEET

Version Code 99KIN0_P
Invader Basic Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1050 mm
Rear width 636 mm
Front width 720 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214-1/FR/08
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 017/CH/99
Version Code 99KINOM_P
Invader Motorsport Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1050 mm
Rear width 636 mm
Front width 720 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Hydraulic self adjusting
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 330 motorsport
Bodyworks Eurostar Agile / Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 017/CH/99
Version Code 99KLM0_P
Le Mans Basic Version
Ø Tubes and material Mix 30-32 x 2 - 25 cr-mo4
Wheel base 1046 mm
Rear width 636 mm
Front width 718 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214-1/FR/08
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 52/CH/20
Version Code 99KLM0M_P
Le Mans Motorsport Version
Ø Tubes and material Mix 30-32 x 2 - 25 cr-mo4
Wheel base 1046 mm
Rear width 636 mm
Front width 718 mm
Length 1530 mm
Tank capacity 9 lit
Brake system hydraulic self adjusting
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 320 motorsport
Bodyworks Eurostar Agile / Wings
Magnesium Wheels 130-210 - 130-180 mm
Homologation 52/CH/20

OPTIONAL

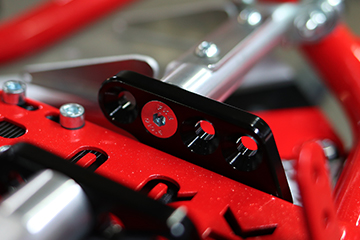

CRANK-GEAR

Allows you to adjust the pedals according to the driver's height in a simple and fast manner.

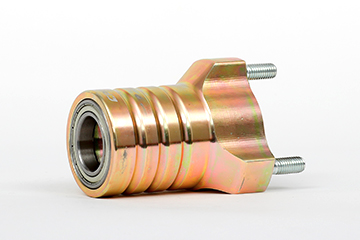

MAGNESIUM HUBS KIT

Of various lengths, both at the front and rear. They have resulted in a reduction in the weight of the rotating masses as well as different setup possibilities thanks to the different mechanical properties of magnesium.

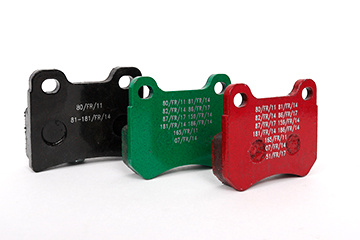

GREEN - RED – BLACK BRAKE PADS

Three different types of brake pads to optimise braking depending on the driver's driving style.

TEFLON BAR

The Teflon bar allows the adjustment of the chassis setup according to different track grip conditions.

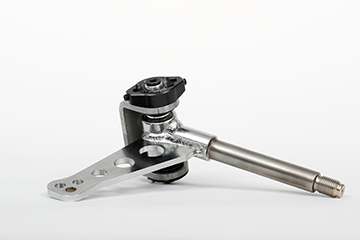

KIT EASY CASTER

Innovative adjustment system that allows you to have more degrees for adjusting the front wheels.

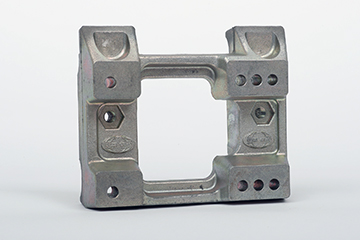

MAGNESIUM PLATE

The magnesium engine track gives a significant reduction in weight.
