KZ / SHIFTER / DD2

High-precision tube cutting and welding

Chassis are made of seamless special CrMo steel tubes of diameters 30 mm and 32 mm (1.26 in). High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through high-tech CNC machines.

>Components are obtained from a selection of best aluminium and magnesium solid pieces and then anodized, the first being done with high-tech fully automatized machines and held to tight tolerances. All these operations are performed within Parolin Racing Kart’s facilities.

Wheelbase ranges from 1045 to 1050 mm. Stub axles are cut from a single steel piece. Ackerman geometry, camber and caster are easily adjustable thanks to the innovative Eurostar eccentric system. Pedals are made of aluminium and present an ultra-low friction attachment system that provides enhanced sensibility.

Brakes are hydraulic self-adjusting CIK FIA homologated AP RACE 06, in front and rear. Rear brake rotor is 180 x 18 mm or 194 x 18 mm in diameter, front brake rotors are 150 x 13 mm or 151,5 x 10 mm in diameter, all made of Cast Iron and ventilated. Brakes, as all components, are produced within our facilities. It presents front and rear removable stabilizer bars.

Rear axle is supported by three bearings with special cassettes and is 50 mm in diameter. Optional 40 mm is available. The new aerodynamic streamlined bodyworks Eurostar Dynamica are among the lightest available in the market. Wheels are 210/130, made of magnesium, anodized, heat treated and present a triple bead retention system. Chassis are powder coated in Parolin red color and CIK FIA homologated.

Gallery

TECHNICAL SHEET

Version Code 99KIN0_P
Invader Basic Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1050 mm
Rear width 636 mm
Front width 720 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214-1/FR/08
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 017/CH/99
Version Code 99KINOM_P
Invader Motorsport Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1050 mm
Rear width 636 mm
Front width 720 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Hydraulic self adjusting
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 330 motorsport
Bodyworks Eurostar Agile / Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 017/CH/99
Version Code 99KLM0_P
Le Mans Basic Version
Ø Tubes and material Mix 30-32 x 2 - 25 cr-mo4
Wheel base 1046 mm
Rear width 636 mm
Front width 718 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214-1/FR/08
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 52/CH/20
Version Code 99KLM0M_P
Le Mans Motorsport Version
Ø Tubes and material Mix 30-32 x 2 - 25 cr-mo4
Wheel base 1046 mm
Rear width 636 mm
Front width 718 mm
Length 1530 mm
Tank capacity 9 lit
Brake system hydraulic self adjusting
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 320 motorsport
Bodyworks Eurostar Agile / Wings
Magnesium Wheels 130-210 - 130-180 mm
Homologation 52/CH/20
Version Code 99KMC5_P
Montecarlo Basic Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1045 mm
Rear width 648 mm
Front width 722 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Eurostar brake system 214/FR/08
Brake position standard
Front brake disk ventilated 152x10 mm
Rear brake disk ventilated 199,5x12 mm
Axle 50x2x1040 hollow
Steering wheel 320 black
Bodyworks Eurostar Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation 212/CH/08
Version Code 99KMC5M_P
Montecarlo Motorsport Version
Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1045 mm
Rear width 648 mm
Front width 722 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Hydraulic self adjusting
Brake position standard
Front brake disk ventilated 152x10 mm
Rear brake disk ventilated 199,5x12 mm
Axle 50x2x1040 hollow
Steering wheel 330 motorsport
Bodyworks Eurostar Agile / Wings
Magnesium Wheels 130-210 mm
Homologation 212/CH/08

OPTIONAL

KIT EASY CASTER

Innovative adjustment system that allows you to have more degrees for adjusting the front wheels.

MAGNESIUM HUBS KIT

Of various lengths, both at the front and rear. They have resulted in a reduction in the weight of the rotating masses as well as different setup possibilities thanks to the different mechanical properties of magnesium.

GREEN - RED – BLACK BRAKE PADS

Three different types of brake pads to optimise braking depending on the driver's driving style.

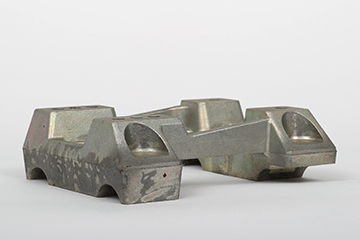

MAGNESIUM PLATE

The magnesium engine track gives a significant reduction in weight.

CRANK-GEAR

Allows you to adjust the pedals according to the driver's height in a simple and fast manner.

TEFLON BAR

The Teflon bar allows the adjustment of the chassis setup according to different track grip conditions.
